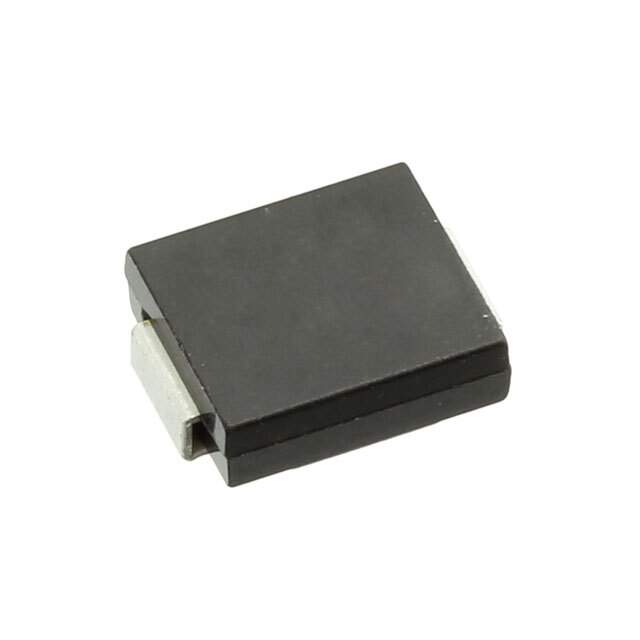

The ES5AC is a surface-mount rectifier diode manufactured by Jiangsu High diode Semiconductor Co., Ltd. It is designed for general-purpose rectification applications. This diode is characterized by its moderate forward current capability, high surge current withstand, and compact size.

Applications

• General Rectification: Used in AC-DC power supplies for converting AC voltage to DC voltage.
• Reverse Polarity Protection: Acts as a reverse polarity protection diode in various electronic circuits.
• Freewheeling Diode: Used to protect circuits from inductive voltage spikes.
• Voltage Clamping: Used to limit voltage spikes to safe levels.
• Adapter Circuits: Incorporated in power adapters to convert AC to DC.

Features

• High Surge Current Capability: Provides protection against transient voltage surges.
• Low Forward Voltage Drop: Minimizes power losses and improves efficiency.
• Surface Mount Package: Facilitates automated assembly and reduces board space.
• Glass Passivated Chip Junction: Offers enhanced reliability and performance.
• RoHS Compliant: Meets environmental standards for hazardous substances.

Benefits

• Reliable Protection: High surge current capability provides reliable protection against voltage transients.
• Improved Efficiency: Low forward voltage drop reduces power dissipation, leading to higher efficiency.
• Compact Design: Surface mount package saves board space and simplifies assembly.
• Robust Performance: Glass passivated chip junction provides robust performance and long-term reliability.
• Versatile Applications: Suitable for a wide range of general-purpose rectification applications.

Additional Details

The ES5AC typically features a repetitive peak reverse voltage of 600V and a forward current of 5A. It has a surge current rating of 150A. The forward voltage drop is generally around 1.1V at 5A. The reverse leakage current is low, typically in the microampere range. The diode comes in a SMC (DO-214AB) package designed for surface mounting. The operating temperature range generally spans from -55°C to +150°C. Always consult the manufacturer's datasheet for precise specifications and application guidelines.
