Same model may have multiple batches, images only for reference.

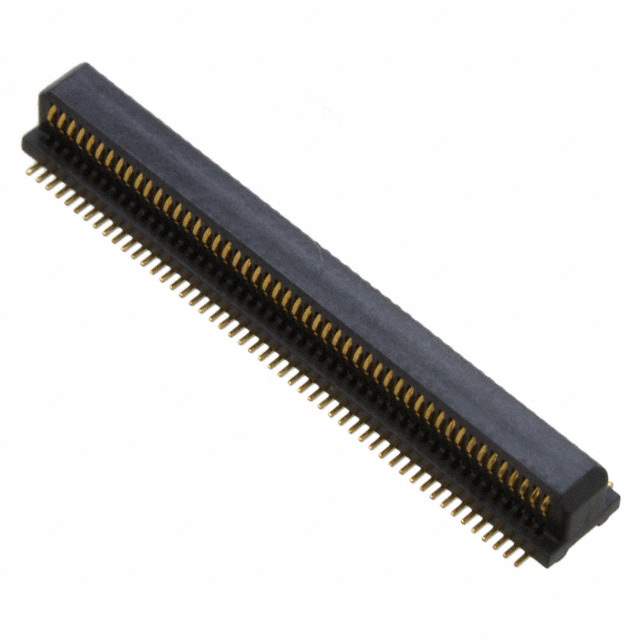

WR-100S-VF-N1 Real Image
Same model may have multiple batches, images only for reference.

WR-100S-VF-N1

Part No WR-100S-VF-N1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 100POS SMD GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features 100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Manufacturer JAE Electronics
Series WR
Package Strip
Mounting Surface Mount
Family Name WR-100S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -670-1958, -670-1958-1-ND, WR-100S-VF-N1-ND, -670-1958-2, -670-1958-1, WR100SVFN1, 670-1958, -670-1958-ND, -WR-100S-VF-N1
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 903344-WR-100S-VF-N1
Ultra Librarian 3D Model Ultra Librarian WR-100S-VF-N1 CAD Model

Description

The JAE Electronics WR-100S-VF-N1 is a 100 position connector receptacle designed for surface mount applications.

  • Positions: 100
  • Mounting Type: Surface Mount
  • Contacts: Gold Plated, Center Strip
  • Series: WR
  • Packaging: Strip
  • Family Name: WR-100S
  • Category: Connectors
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • Estimated Production Lead Time: 13 weeks
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Other Part Numbers: -670-1958, -670-1958-1-ND, WR-100S-VF-N1-ND, -670-1958-2, -670-1958-1, WR100SVFN1, 670-1958, -670-1958-ND, and -WR-100S-VF-N1
