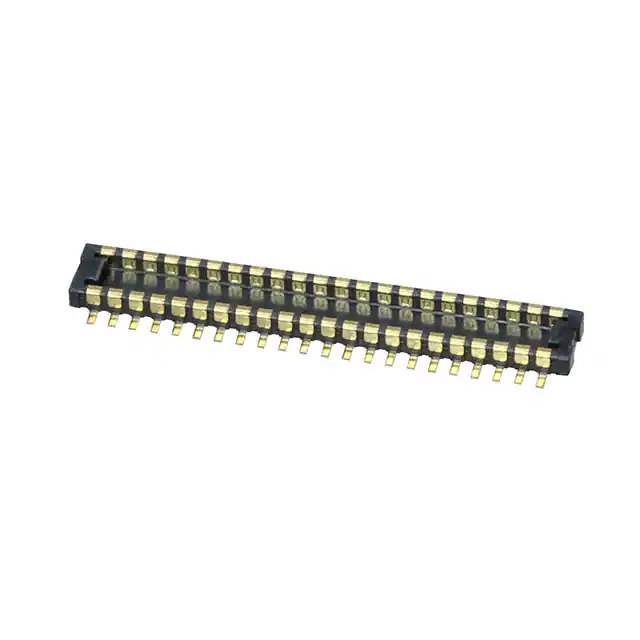

WP7B-P040VA1-R8000

Part No WP7B-P040VA1-R8000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 40POS SMD GOLD / 40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP7
Package Tape & Reel
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 40
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 0.7mm
Height Above Board 0.020" (0.50mm)
Base Product Number WP7B-P04
Standard Package 8,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 903293-WP7B-P040VA1-R8000
Ultra Librarian 3D Model Ultra Librarian WP7B-P040VA1-R8000 CAD Model

Description

The WP7B-P040VA1-R8000 is a rectangular connector array from JAE Electronics.

  • Series: WP7
  • Application: Mezzanine Board-to-Board
  • Positions: 40
  • Pitch: 0.016" (0.40mm)
  • Connector Type: Plug with Outer Shroud Contacts
  • Rows: 2
  • Contact Finish: Gold with a thickness of 4.00μin (0.100μm)
  • Mounting: Surface Mountable
  • Height Above Board: 0.020" (0.50mm)
  • Package: Tape and Reel
  • Mated Stacking Height: 0.7mm
  • Product Status: Active
  • Moisture Sensitivity Level: 1 (unlimited)
