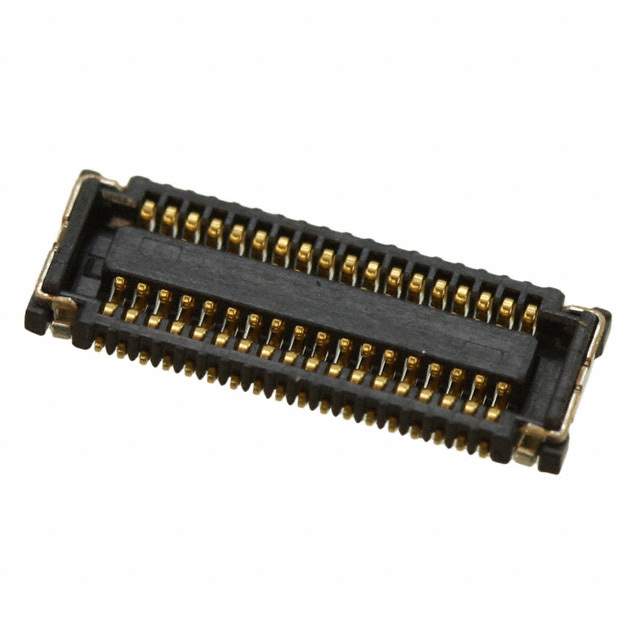

WP3-S036VA1-R6000 Real Image
Same model may have multiple batches, images only for reference.

WP3-S036VA1-R6000

Part No WP3-S036VA1-R6000
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Datasheet
WP3-S036VA1-R6000 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series WP3
Package Tape & Reel (TR),Cut Tape (CT)
Product Status Obsolete
Connector Type Receptacle, Center Strip Contacts
Number of Positions 36
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 1mm
Height Above Board 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1315943-WP3-S036VA1-R6000
Ultra Librarian 3D Model Ultra Librarian WP3-S036VA1-R6000 CAD Model

Description

The JAE Electronics WP3 series rectangular connector is designed for board-to-board and board-to-cable applications.

  • Connector Type: Center Strip Receptacle
  • Number of Positions: 36
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention, Gold Contact Finish
  • Height Above Board: 0.039" (1.00mm)
  • Mounting Type: SMD (SMT)
  • Package Options: Tape & Reel (TR) and Cut Tape (CT)
  • Voltage Rating: 50V
  • Current Rating: 0.3A per Contact
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
