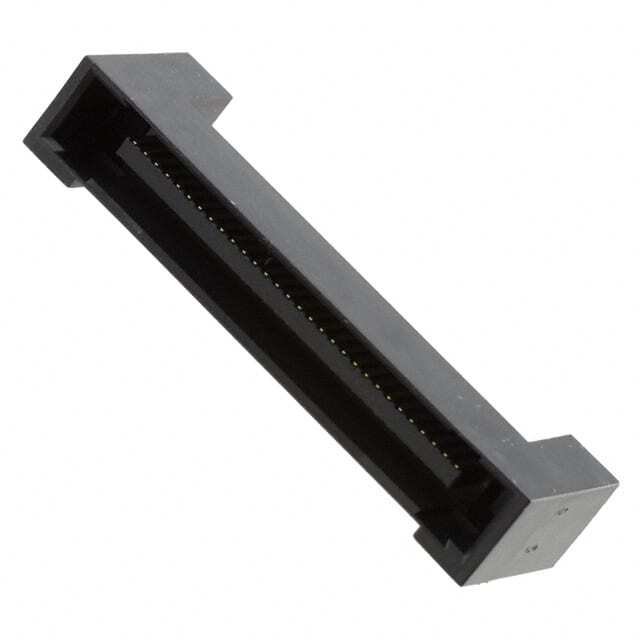

TX25-60P-LT-H1E
Same model may have multiple batches, images only for reference.

TX25-60P-LT-H1E

Part No TX25-60P-LT-H1E
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN PLUG 60POS R/A GOLD
Datasheet
TX25-60P-LT-H1E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series TX25
Package Tray
Product Status Active
Connector Type Plug, Center Strip Contacts
Number of Positions 60
Pitch 0.050" (1.27mm)
Number of Rows 2
Mounting Type Through Hole, Right Angle
Features Board Lock
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.354" (9.00mm)
Base Product Number TX25-60P
Standard Package 528 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 848635-TX25-60P-LT-H1E
Ultra Librarian 3D Model Ultra Librarian TX25-60P-LT-H1E CAD Model

Description

The TX25 series from JAE Electronics is a versatile range of rectangular connector arrays.

  • Series: TX25
  • Connector Type: Plug
  • Contact Type: Center Strip
  • Number of Positions: 60
  • Pitch: 0.050" (1.27mm)
  • Mounting Feature: Board Lock
  • Number of Rows: 2
  • Contact Finish: Gold
  • Mounting Type: Through-Hole
  • Orientation: Right-Angle
  • Height Above Board: 0.354" (9.00mm)
  • Application: Board-to-Board
  • Application: Automotive
  • Package: Tray
  • Standard Package Quantity: 528 pcs
