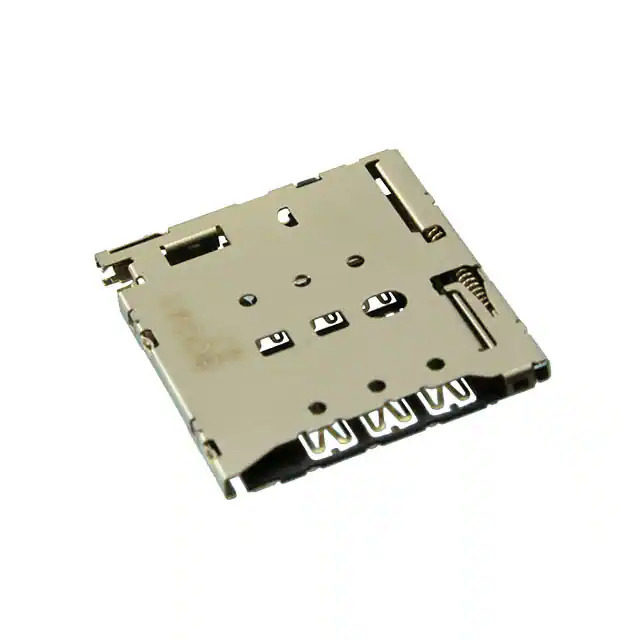

SF56K006VBAR2000 JAE Electronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr JAE Electronics
Series SF56K
Package Tape & Reel
Product Status Active
Card Type Micro SIM
Number of Positions 8 (6 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Ejector Side Right
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.050" (1.28mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number SF56K006
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1365976-SF56K006VBAR2000
Ultra Librarian 3D Model Ultra Librarian SF56K006VBAR2000 CAD Model

Description

The SF56K006VBAR2000 is a PC Card Socket from JAE Electronics.

  • Mounting Type: Surface Mount, Right Angle
  • Number of Positions: 8 (6 + 2)
  • Card Type: Micro SIM
  • Height Above Board: 0.050" (1.28mm)
  • Switch: Yes
  • Contact Finish: Gold
  • Series: SF56K
  • California Prop 65 Compliant: Yes
  • Packaging: Tape & Reel
  • Product Status: Active
  • MSL Level: Unlimited
  • Insertion/Removal Method: Push-In, Push-Out
