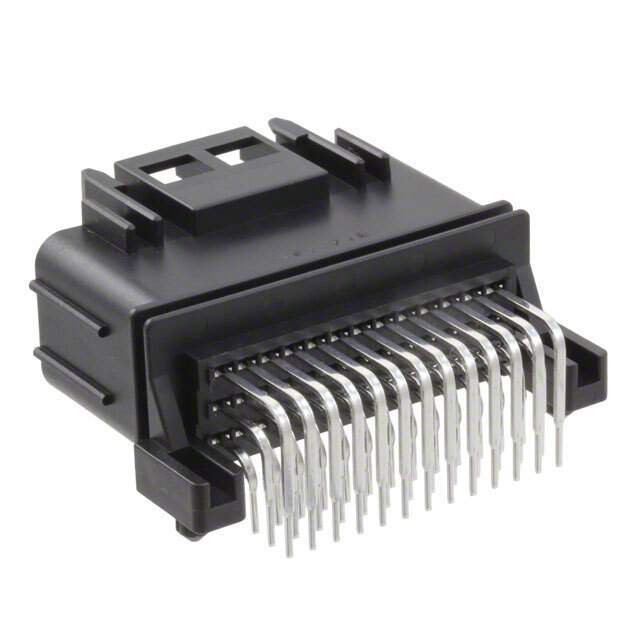

MX47039NF1

Part No MX47039NF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER R/A 39POS 2.5MM
Datasheet
MX47039NF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer JAE Electronics
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging Bulk
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 39
Number of Rows 3
Row Spacing - Mating 0.142" (3.60mm)
Ultra Librarian 3D Model Ultra Librarian MX47039NF1 CAD Model

Description

MX47 Series utilizes a structure similar to the existing MX23A Series waterproof connector, but is more compact while maintaining a low height. The applicable cable and performance is equivalent or higher than MX23A, there is a guide key for secure mating, and pin terminals have Pb-free compliant complete plating.

Superior vibration resistance makes the connector ideally suited for use in harsh environments such as the engine areas of both 2 and 4-wheeled vehicles.
