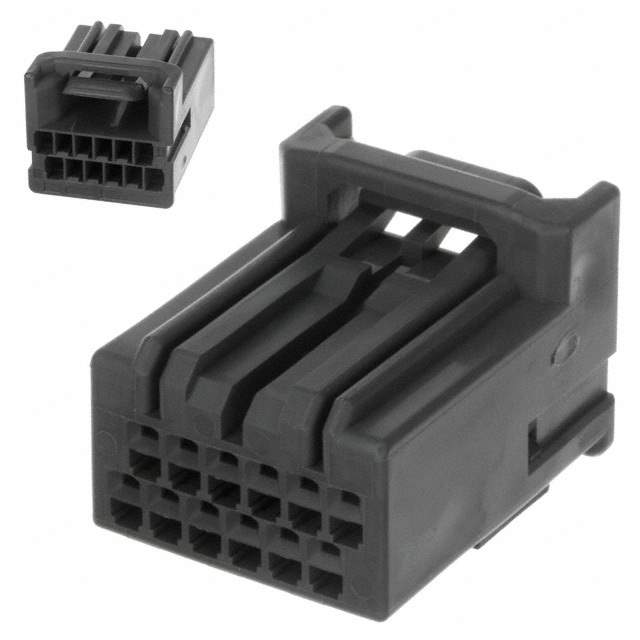

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr JAE Electronics
Series MX34
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 12
Pitch 0.087" (2.20mm)
Number of Rows 2
Row Spacing 0.118" (3.00mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Gray
Note Contacts Not Included
Base Product Number MX340
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.6000
Other Names -MX34012SF1,670-2286
Standard Package 936
Win Source Part Number 1081286-MX34012SF1
Ultra Librarian 3D Model Ultra Librarian MX34012SF1 CAD Model

Description

The MX34012SF1 is a 12-position connector housing from JAE Electronics.

  • For Use With: Female Socket Contacts
  • Pitch: 0.087 inches
  • Color: Gray
  • Number of Rows: 2
  • Row Spacing: 0.118 inches
  • Packaging: Tray
  • Contact Termination: Crimp
  • Mounting Type: In-Line
  • ECCN: EAR99
  • HTSUS Code: 8538.90.6000
