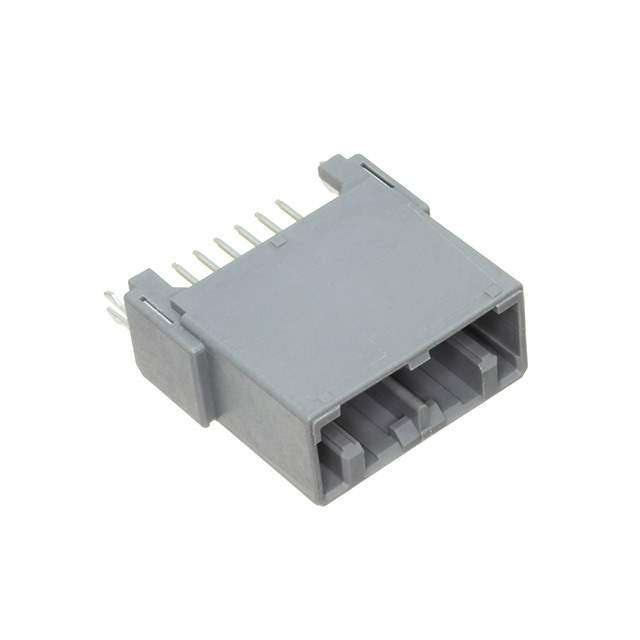

MX34007UF1 Real Image
Same model may have multiple batches, images only for reference.

MX34007UF1

Part No MX34007UF1
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN SOCKET HOUSING 2.2MM 7POS
Datasheet
MX34007UF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JAE Electronics
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.087" (2.20mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 7
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.303" (7.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.594" (15.09mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Board Lock
Temperature Range - Operating -40°C to 85°C
Insulation Color Gray
Current Rating 3A
Applications Automotive
Win Source Part Number 1081332-MX34007UF1
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1,260
Ultra Librarian 3D Model Ultra Librarian MX34007UF1 CAD Model

Description

The MX34007UF1 is a 7-position header connector from JAE Electronics designed for through-hole mounting.

  • Positions: 7
  • Mounting: through-hole
  • Features: board lock and a locking ramp
  • Pitch: 0.087 inches (2.20mm)
  • Application: automotive
  • Contact Type: male pin
  • Contact Finish: tin
  • Insulation Material: syndiotactic polystyrene (SPS), glass filled
  • Insulation Color: gray
  • Status: active
  • Popularity: medium
  • Supply and Demand Status: balanced
  • Package Quantity: 1,260 pieces
