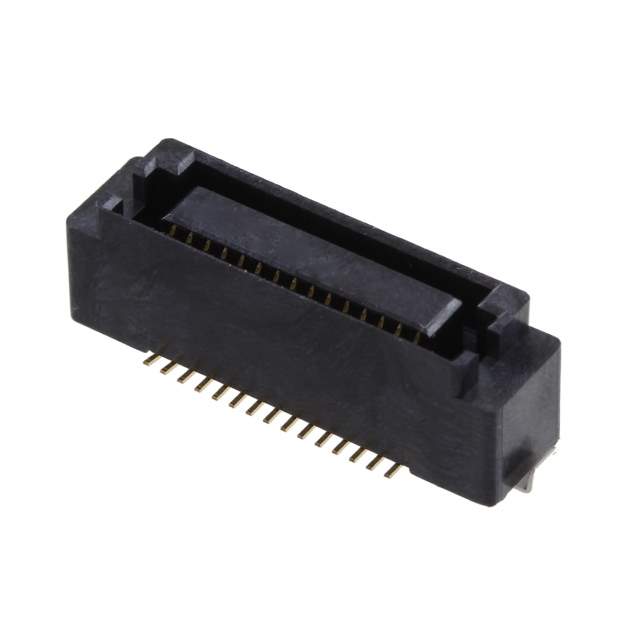

KX14-30K5DE Real Image
Same model may have multiple batches, images only for reference.

KX14-30K5DE

Part No KX14-30K5DE
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 30POS SMD GOLD / 30 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Datasheet
KX14-30K5DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series KX14
Package Tray
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 30
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 7mm, 8mm, 9mm
Height Above Board 0.258" (6.55mm)
Base Product Number KX14-30K
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 670-1248,KX1430K5DE,-KX14-30K5DE
Standard Package 1
Win Source Part Number 1166076-KX14-30K5DE
Ultra Librarian 3D Model Ultra Librarian KX14-30K5DE CAD Model

Description

The JAE Electronics KX14-30K is a 30 position receptacle outer shroud contacts connector. It is part of the KX14 series with a pitch of 0.031" (0.80mm).

  • Board Guide: Yes
  • Solder Retention: Yes
  • Mounting: SMD (SMT)
  • Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Package: Tray
  • Mated Stacking Heights: 7mm, 8mm, and 9mm
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Other names: 670-1248, -KX14-30K5DE
