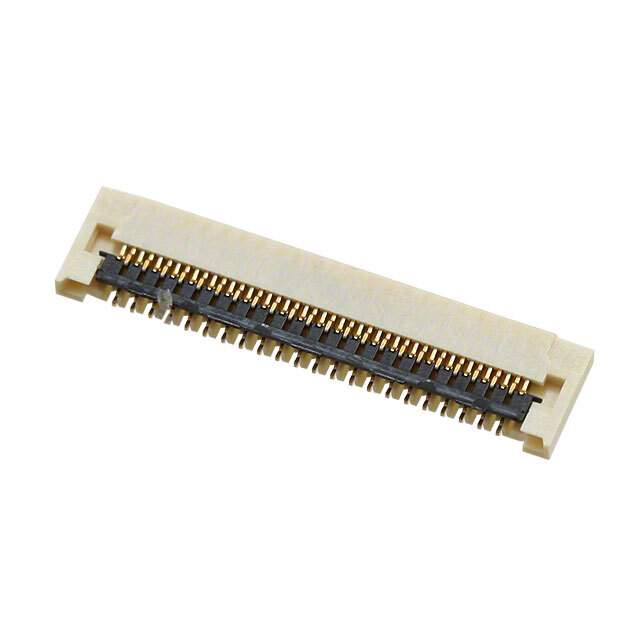

FF02S45SV1-R3000

Get a Quote

Part No	FF02S45SV1-R3000
Manufacturer	JAE Electronics
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 45POS 0.3MM R/A / 45 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	JAE Electronics
Series	FF02S
Package	Tape & Reel (TR)
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	45
Pitch	0.012" (0.30mm)
Termination	Solder
FFC, FCB Thickness	0.12mm
Height Above Board	0.035" (0.88mm)
Locking Feature	Flip Lock
Cable End Type	Straight
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.35A per Contact
Contact Finish Thickness	3.94µin (0.10µm)
Housing Color	White
Actuator Color	Black
Mating Cycles	-
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Standard Package	3,000 pcs
Win Source Part Number	1382075-FF02S45SV1-R3000
Ultra Librarian 3D Model	Ultra Librarian FF02S45SV1-R3000 CAD Model

Description

The 1382075-FF02S45SV1-R3000 is a FFC (Flat Flexible) Connector Assembly designed for easy and reliable connection of flat flex cables. It is manufactured by JAE Electronics.

Pitch: 0.012" (0.30mm)
Number of Positions: 45
Feature: Zero insertion force (ZIF)
Termination: Solder
Contact Finish: Gold
Mounting Type: Surface mount, Right Angle
Operating Temperature Range: -40°C to 85°C
