5-102699-7 TE Connectivity
Same model may have multiple batches, images only for reference.

5-102699-7

Part No 5-102699-7
Manufacturer TE Connectivity
Catalog Rectangular Connectors

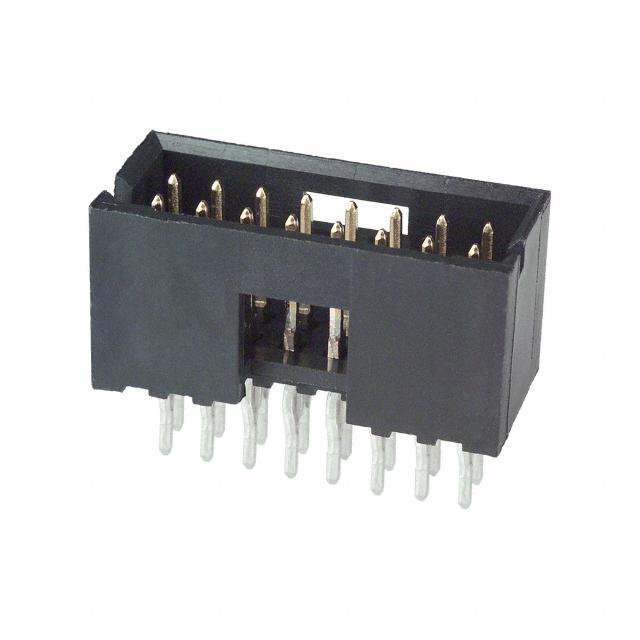

Description CONN HEADER VERT .100 16POS 30AU
Datasheet
5-102699-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series AMPMODU Mod II
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 16
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Press-Fit, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.320" (8.13mm)
Contact Length - Post 0.250" (6.35mm)
Overall Contact Length 0.660" (16.76mm)
Insulation Height 0.440" (11.18mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Operating Temperature Range -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Contact Finish Thickness - Post 100μin (2.54μm)
Win Source Part Number 763880-5-102699-7
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5-102699-7 CAD Model

Description

The TE Connectivity AMP Connectors 763880-5-102699-7 is a 16-position male pin header connector with a pitch-mating of 0.100" (2.54mm). The manufacturer of this product is TE Connectivity AMP Connectors.

  • Positions: 16
  • Pitch-Mating: 0.100" (2.54mm)
  • Design: Shrouded 4-wall
  • Connection: Board-to-board or cable
  • Contact Finish-Mating: Gold, 30μin (0.76μm)
  • Contact Finish-Post: Tin, 100μin (2.54μm)
  • Current Rating: 3A
  • Operating Temperature Range: -55°C to 105°C
  • Category: Connectors and Interconnects
  • Supply and Demand Status: Limited
