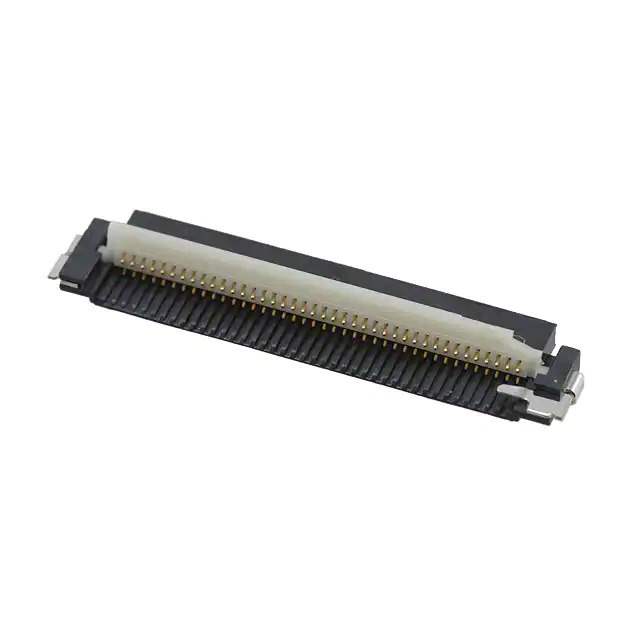

FA5S040HP1

Name: FA5S040HP1
Brand: JAE Electronics
SKU: 852070
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FA5S040HP1
Manufacturer	JAE Electronics
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 40POS 0.5MM R/A / 40 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	JAE Electronics
Series	FA5
Package	Strip
Product Status	Last Time Buy
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	40
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.057" (1.45mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.8A per Contact
Housing Color	Black
Actuator Color	White
Mating Cycles	20
Base Product Number	FA5S040H
Standard Package	1 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	852070-FA5S040HP1
Ultra Librarian 3D Model	Ultra Librarian FA5S040HP1 CAD Model

Description

The FA5S040HP1 is a 40-position FFC, FPC (Flat Flexible) Connector Assembly from JAE Electronics.

Pitch: 0.020" (0.50mm)
Number of Positions: 40
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Contact Material: Copper Alloy
Contact Finish: Gold
Voltage Rating: 50V
Current Rating: 0.8A per Contact
Series: FA5
Height Above Board: 0.057" (1.45mm)
Contact Position: Bottom
Locking Type: Flip Lock
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material: Polyamide (PA), Nylon, Glass Filled
Operating Temperature: -40°C ~ 85°C
Flammability Rating: UL94 V-0
