DX07S024JJ4R1300

Part No DX07S024JJ4R1300
Manufacturer JAE Electronics
Catalog USB, DVI, HDMI Connectors

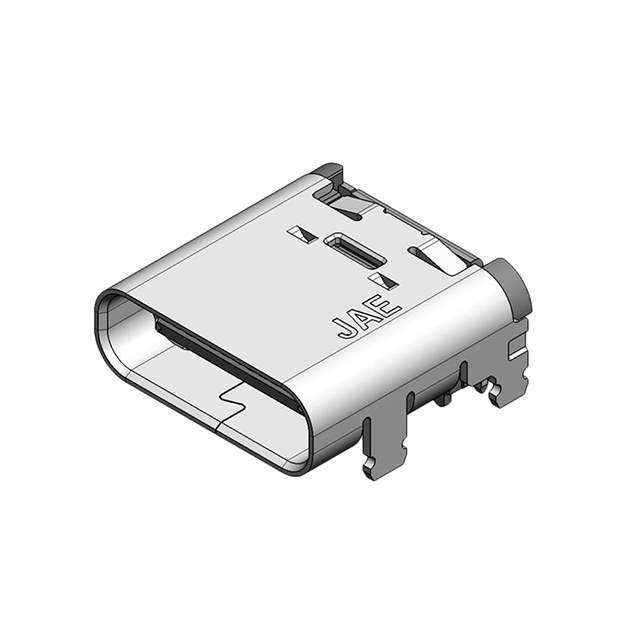

Description CONN RCP USB3.1 TYPEC 24P SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202467-DX07S024JJ4R1300
Manufacturer JAE Electronics
Category Connectors, Interconnects -USB, DVI, HDMI Connectors -USB, DVI, HDMI Connector Assemblies
Series DX07
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Mounting Type Surface Mount, Right Angle; Through Hole
Features Board Lock
Ultra Librarian 3D Model Ultra Librarian DX07S024JJ4R1300 CAD Model

Description

The DX07 series from JAE Electronics is a USB-C (USB TYPE-C) connector assembly.

  • Contacts: 24
  • Feature: Board Lock Mechanism
  • Packaging: Tape & Reel or Cut Tape
  • Mounting: Surface or Through Hole
  • Status: Active
