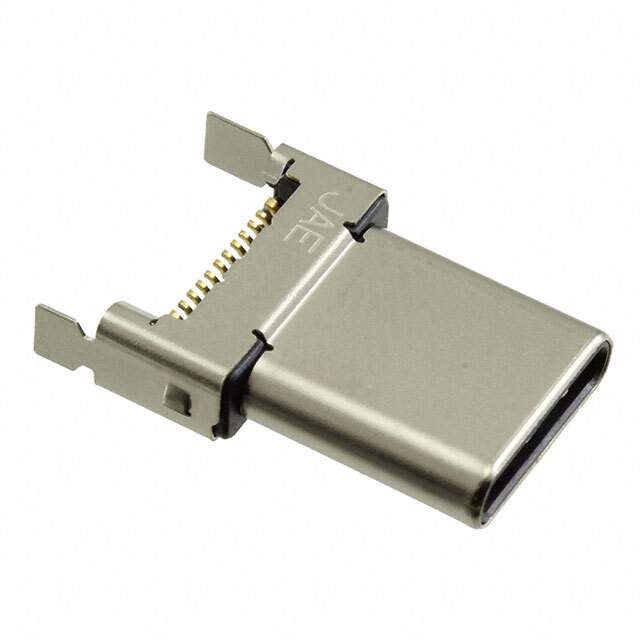

DX07P024MJ1R1500

Name: DX07P024MJ1R1500
Brand: JAE Electronics
SKU: 1056544
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DX07P024MJ1R1500
Manufacturer	JAE Electronics
Catalog	USB, DVI, HDMI Connectors
Description	CONN PLUG USB3.1 TYPEC BRD EDGE / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Plug Connector 24 Position Board Edge, Straddle Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr	JAE Electronics
Series	DX07
Package	Tape & Reel
Connector Type	USB-C (USB TYPE-C)
Number of Contacts	24
Gender	Plug
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type	Board Edge, Straddle Mount
Mounting Feature	Reversible
Termination	Solder
Features	Cover
Temperature Range - Operating	-30°C ~ 80°C
Number of Ports	1
Current Rating (Amps)	0.25A, 1.25A
Voltage - Rated	20VAC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Insulation Color	Black
Base Product Number	DX07P024
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	670-2850-1,670-2850-2,670-2850-6
Standard Package	1,500
Win Source Part Number	1056544-DX07P024MJ1R1500
Ultra Librarian 3D Model	Ultra Librarian DX07P024MJ1R1500 CAD Model

Description

The DX07P024MJ1R1500 is a USB-C connector from the DX07 series with 24 contacts.

Contacts: 24
Type: Plug
Termination: Solder
Contact Finish: Gold
Shielded: Yes
Specification: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Voltage Rating: 20VAC
Reversible: Yes
Mating Cycle: 10000
Mounting Feature: Board edge and straddle mount
Ingress Protection: Not Specified
Material Flammability Rating: Not Specified
Packaging: Tape and Reel
Standard Package: 1500 units
Temperature Range: -30°C to 80°C
ECCN: EAR99
