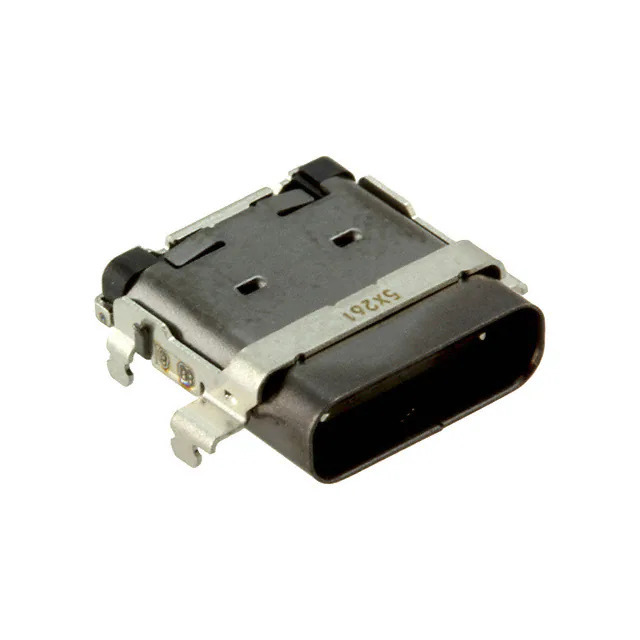

DX07B024XJ1R1300 JAE Electronics
Same model may have multiple batches, images only for reference.

DX07B024XJ1R1300

Part No DX07B024XJ1R1300
Manufacturer JAE Electronics
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB3.1 TYPEC 24POS SMD / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr JAE Electronics
Series DX07
Package Tape & Reel
Product Status Active
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Mounting Feature Horizontal, Mid Mount
Termination Solder
Features Pick and Place
Ingress Protection -
Temperature Range - Operating -30°C ~ 80°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A
Voltage - Rated 20V
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating -
Insulation Color Black
Base Product Number DX07B024
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 1355639-DX07B024XJ1R1300
Ultra Librarian 3D Model Ultra Librarian DX07B024XJ1R1300 CAD Model

Description

The DX07B024XJ1R1300 is a USB-C connector assembly manufactured by JAE Electronics. It is a USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed +) connector with 24 contacts. The connector is designed for board edge, cutout, surface mount, and through-hole right angle mounting.

  • Connector Type: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed +)
  • Number of Contacts: 24
  • Mounting Type: Board Edge, Cutout, Surface Mount, Through Hole Right Angle
  • Voltage Rating: 20V
  • Current Rating (Amps): 0.25A, 1.25A
  • Shielded: Yes
  • Contact Finish: Gold
  • Termination: Solder
  • Insulation Color: Black
  • Shell / Shielding Material: Steel, Stainless Steel
  • Pick and Place: Yes
  • Mating Cycle: 10,000
  • Status: Active
