Same model may have multiple batches, images only for reference.

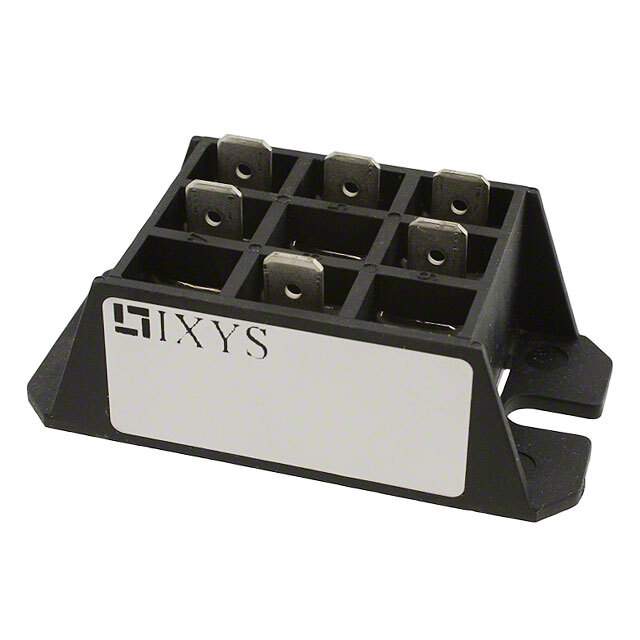

VHF28-12IO5 Real Image
Same model may have multiple batches, images only for reference.

VHF28-12IO5

Part No VHF28-12IO5
Manufacturer IXYS
Catalog TVS - Thyristors
Description RECT BRIDGE 1PH 1200V FO-F-A / SCR Module 1.2 kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount FO-F-A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Package Box
Product Status Obsolete
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 1.2 kV
Current - On State (It (AV) ) (Max) 28 A
Voltage - Gate Trigger (Vgt) (Max) 1 V
Current - Gate Trigger (Igt) (Max) 65 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 300A, 330A
Current - Hold (Ih) (Max) 100 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case FO-F-A
Base Product Number VHF28
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 1348630-VHF28-12IO5
Ultra Librarian 3D Model Ultra Librarian VHF28-12IO5 CAD Model

Description

The VHF28-12IO5 is a bridge, single-phase SCR/Diode module from IXYS.

  • Voltage Off-State: 1.2kV
  • Current Non-Repetitive Surge: 300A, 330A @ 50 and 60Hz
  • Mounting Type: Chassis Mount
  • Package: FO-F-A
  • Gate Trigger Voltage (Max): 1V
  • Current Gate Trigger: 65mA
  • On-State Current (Max): 28A
  • Operating Temperature: -40°C to 125°C (TJ)
