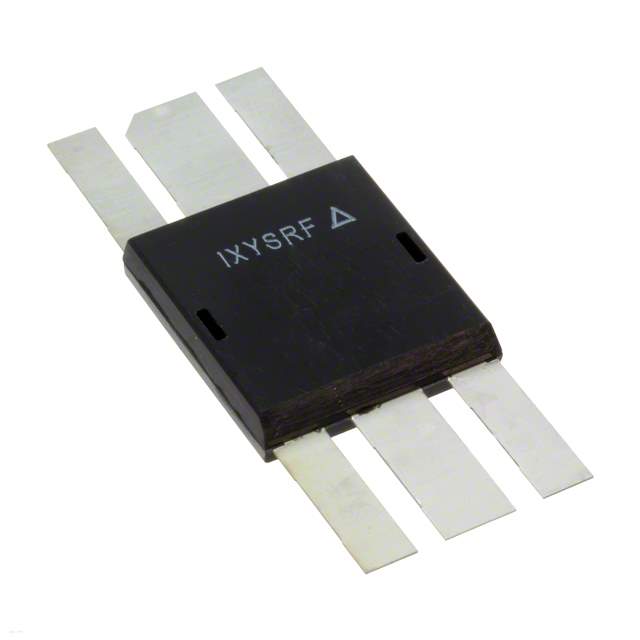

SS275TA12205 Real Image
Same model may have multiple batches, images only for reference.

SS275TA12205

Part No SS275TA12205
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Datasheet
SS275TA12205 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr IXYS-RF
Package Tube
Product Status Obsolete
Diode Configuration 3 Common Anode
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 5 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 200 µA @ 1200 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting SMD (SMT)
Package / Case 6-SMD, Flat Lead Exposed Pad
Supplier Device Package DE275
Base Product Number SS275
Standard Package 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1283030-SS275TA12205
Ultra Librarian 3D Model Ultra Librarian SS275TA12205 CAD Model

Description

The SS275TA12205 is a silicon carbide Schottky diode array from IXYS, with a maximum DC reverse voltage (Vr) of 1200 V and a maximum forward voltage (Vf) of 1.8 V @ 5 A.

  • DC Reverse Voltage (Vr): 1200 V
  • Forward Voltage (Vf): 1.8 V @ 5 A
  • Reverse Recovery Time (trr): 0 ns
  • Current Reverse Leakage: 200 µA @ 1200 V
  • Package/Case: 6-SMD, flat lead exposed pad
  • Average Rectified Current (Io): 5A
  • Operating Temperature Range: -55°C to 175°C
