Same model may have multiple batches, images only for reference.

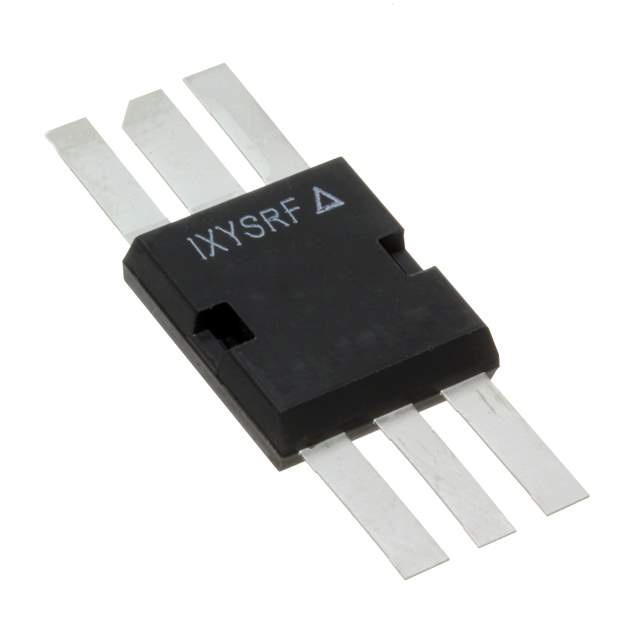

SS150TI60110 Real Image
Same model may have multiple batches, images only for reference.

SS150TI60110

Part No SS150TI60110
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Datasheet
SS150TI60110 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr IXYS-RF
Package Tube
Product Status Obsolete
Diode Configuration 3 Independent
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 5 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 50 µA @ 600 V
Operating Temperature - Junction -55°C ~ 175°C
Mounting SMD (SMT)
Package / Case 6-SMD, Flat Lead Exposed Pad
Supplier Device Package DE150
Base Product Number SS150
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1283025-SS150TI60110
Ultra Librarian 3D Model Ultra Librarian SS150TI60110 CAD Model

Description

The 1283025-SS150TI60110 is a silicon carbide Schottky diode from IXYS-RF that has a voltage rating of 600V DC reverse (max) and a current rating of 10A average rectified (Io) (per diode).

  • DC Reverse Voltage (Vr) (max): 600V
  • Average Rectified Current (Io) (per diode): 10A
  • Voltage Forward (Vf) (max) @ If: 1.8 V @ 5 A
  • Reverse Recovery Time (trr): 0 ns
  • Mounting Type: SMD, flat lead exposed pad
  • Operating Temperature Range: -55°C to 175°C
  • Diode Configuration: 3 independent
  • Package: Tube
