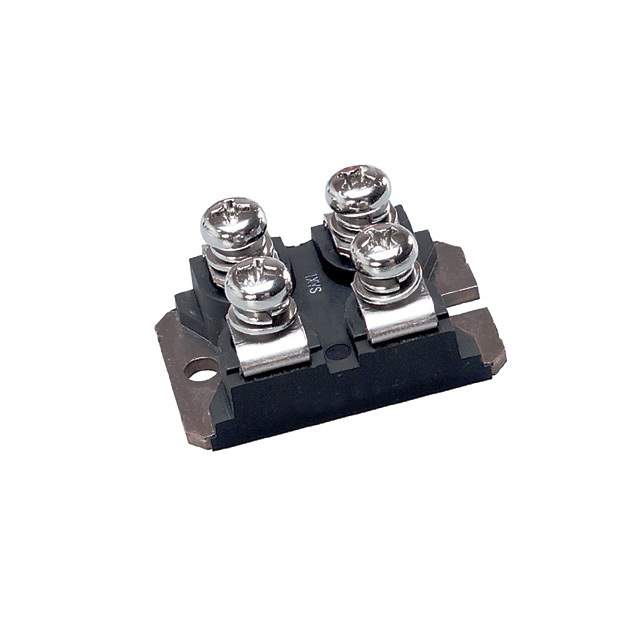

The IXYS SCR module is a single SCR structure that features a voltage-off state of 1.2kV and a current-non rep. surge 50, 60Hz (Itsm) of 2000A, 2150A.

• Structure: Single SCR
• Voltage - Off State: 1.2kV
• Current - Non Rep. Surge 50, 60Hz (Itsm): 2000A, 2150A
• Mounting Type: Chassis Mount
• Package / Case: SOT-227-4, miniBLOC
• Application: Discrete Semiconductor Products, Thyristors, SCRs, and Modules
• Temperature Range - Operating: -40°C ~ 150°C (TJ)
• Current - On State (It (AV)) (Max): 149A
• Current - On State (It (RMS)) (Max): 234A
• Voltage - Gate Trigger (Vgt) (Max): 1.5V
• Current - Gate Trigger (Igt) (Max): 150mA
• Current - Hold (Ih) (Max): 200mA
