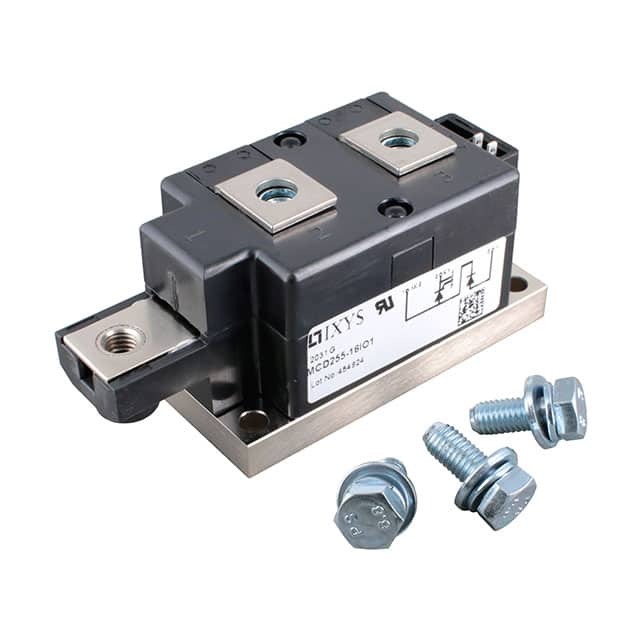

MCD255-16IO1
Same model may have multiple batches, images only for reference.

MCD255-16IO1

Part No MCD255-16IO1
Manufacturer IXYS
Catalog TVS - Thyristors
Description MOD THYRISTOR/DIODE 1600V Y1-CU
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Package Box
Product Status Active
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 250 A
Current - On State (It (RMS)) (Max) 450 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 9000A, 9600A
Current - Hold (Ih) (Max) 150 mA
Temperature Range - Operating -40°C ~ 140°C (TJ)
Mounting Type Chassis Mount
Package / Case Y1-CU
Base Product Number MCD255
Standard Package 3 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 846839-MCD255-16IO1
Ultra Librarian 3D Model Ultra Librarian MCD255-16IO1 CAD Model

Description

The MCD255-16IO1 is a thyristor SCR module from IXYS.

  • Current Rating: 250 A (It (AV))
  • Voltage Rating: 1.6 kV
  • Configuration: series connection of one SCR and one diode
  • Mount: chassis mount design
  • Package: Y1-CU
  • Temperature Range: -40°C to 140°C (TJ)
