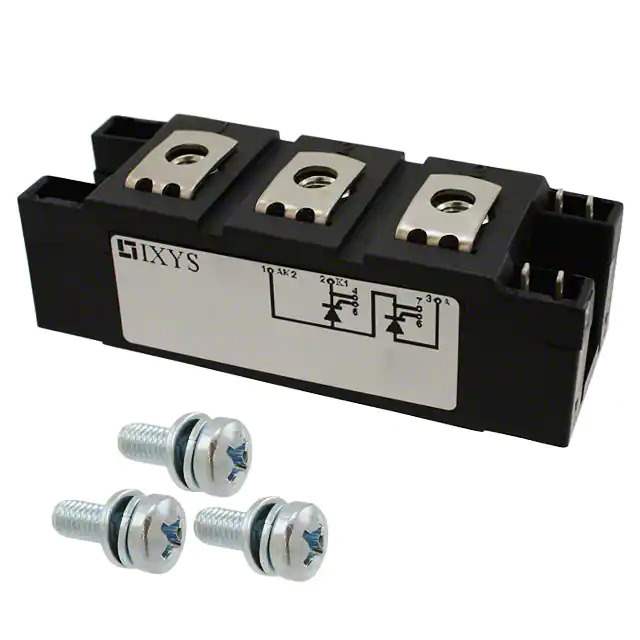

MCC200-18IO1 Real Image
Same model may have multiple batches, images only for reference.

MCC200-18IO1

Part No MCC200-18IO1
Manufacturer IXYS
Catalog TVS - Thyristors
Description MOD THYRISTOR DUAL 1800V Y4-M6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Package Box
Product Status Active
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.8 kV
Current - On State (It (AV)) (Max) 216 A
Current - On State (It (RMS)) (Max) 340 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 8000A, 8600A
Current - Hold (Ih) (Max) 150 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Y4-M6
Base Product Number MCC200
Standard Package 6 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 846907-MCC200-18IO1
Ultra Librarian 3D Model Ultra Librarian MCC200-18IO1 CAD Model

Description

The MCC200-18IO1 is a module used in thyristor applications.

  • Package: Box
  • Quantity: 6 pieces
  • Current Hold: 150mA
  • Off-State Voltage: 1.8kV
  • Gate Trigger Voltage: 2V
  • Gate Trigger Current: 150mA
  • On-State Current: 216A
  • On-State RMS Current: 340A
  • Non-Repetitive Surge Current (50Hz): 8000A
  • Non-Repetitive Surge Current (60Hz): 8600A
  • Connection Structure: Series connection with all SCRs
  • Mounting Type: Chassis Mount
  • Package/Case: Y4-M6
  • Operating Temperature: -40°C to 125°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8541.30.0080
  • Manufacturer: IXYS
  • Base Product Number: MCC200
  • Product Status: Active
  • California Prop 65: Warning Information
