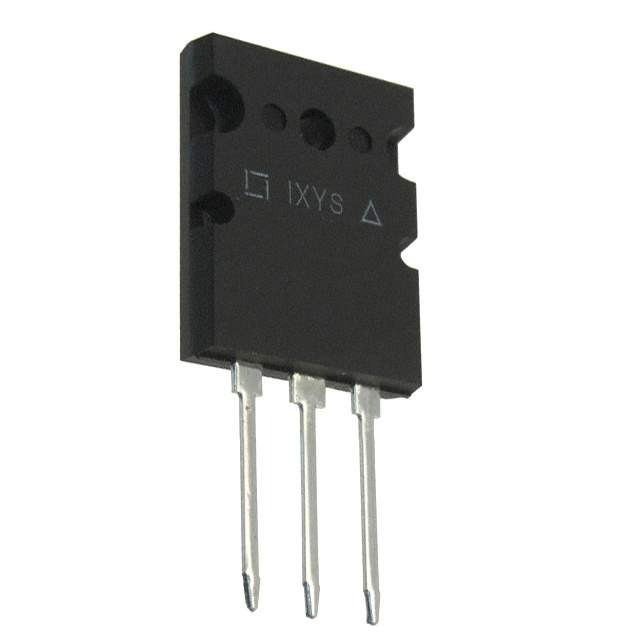

IXYK120N120C3 Real Image
Same model may have multiple batches, images only for reference.

IXYK120N120C3

Part No IXYK120N120C3
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 1200V 240A 1500W TO264 / IGBT 1200 V 240 A 1500 W Through Hole TO-264 (IXYK)
Datasheet
IXYK120N120C3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr IXYS
Series GenX3™, XPT™
Package Tube
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 240 A
Current - Collector Pulsed (Icm) 700 A
Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 120A
Power - Max 1500 W
Switching Energy 6.75mJ (on), 5.1mJ (off)
Input Type Standard
Gate Charge 412 nC
Td (on/off) @ 25°C 35ns/176ns
Test Condition 600V, 100A, 1Ohm, 15V
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-264-3, TO-264AA
Supplier Device Package TO-264 (IXYK)
Base Product Number IXYK120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 25
Win Source Part Number 1028161-IXYK120N120C3
Ultra Librarian 3D Model Ultra Librarian IXYK120N120C3 CAD Model

Description

The IXYK120N120C3 is a single IGBT transistor from IXYS.

  • Manufacturer: IXYS
  • Product Name: IXYK120N120C3
  • Type: Single IGBT Transistor
  • Maximum Power: 1500 W
  • Voltage: 1200 V
  • Features: Low collector-emitter saturation voltage and high current density
  • Application: High-frequency applications
  • Suitable for: Power supplies, motor control, and lighting
