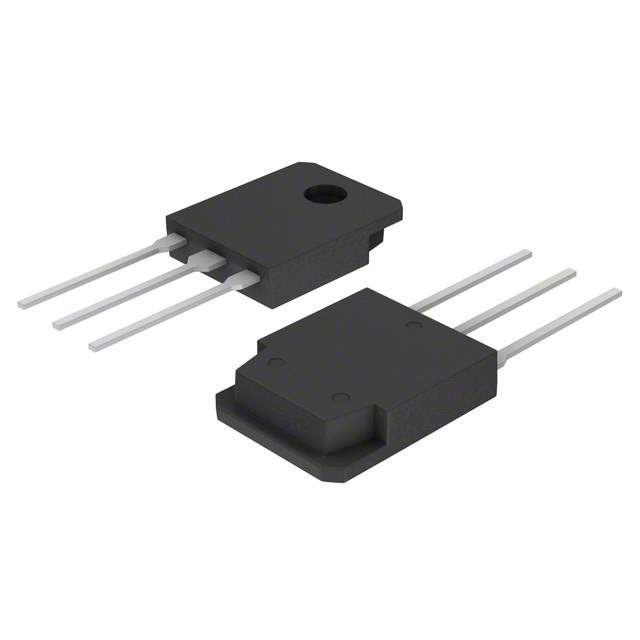

IXYH24N170C

Name: IXYH24N170C
Brand: IXYS
SKU: 1066209
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IXYH24N170C
Manufacturer	IXYS
Catalog	IGBTs - Single
Description	IGBT 1.7KV 58A TO247-3 / IGBT 1700 V 58 A 500 W Through Hole TO-247 (IXYH)
Datasheet	IXYH24N170C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr	IXYS
Series	XPT™
Package	Tube
Voltage - Collector Emitter Breakdown (Max)	1700 V
Current - Collector (Ic) (Max)	58 A
Current - Collector Pulsed (Icm)	145 A
Vce(on) (Max) @ Vge, Ic	3.8V @ 15V, 20A
Power - Max	500 W
Switching Energy	4.9mJ (on), 1.95mJ (off)
Input Type	Standard
Gate Charge	96 nC
Td (on/off) @ 25°C	12ns/160ns
Test Condition	960V, 30A, 15Ohm, 15V
Reverse Recovery Time (trr)	30 ns
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247 (IXYH)
Base Product Number	IXYH24
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	30
Win Source Part Number	1066209-IXYH24N170C
Ultra Librarian 3D Model	Ultra Librarian IXYH24N170C CAD Model

Description

The IXYH24N170C is a single IGBT transistor from IXYS's XPT™ series, housed in a TO-247-3 package.

Package: TO-247-3
Maximum Power: 500 W
Reverse Recovery Time: 30 ns
Voltage Collector-Emitter Breakdown: 1700 V
Maximum Collector Current: 58 A
Pulsed Collector Current: 145 A
Switching Energy: 4.9mJ (on) and 1.95mJ (off)
Gate Charge: 96 nC
Td (on/off) @ 25°C: 12ns/160ns
Mounting: Through-Hole
Temperature Range: -55°C to 175°C (TJ)
