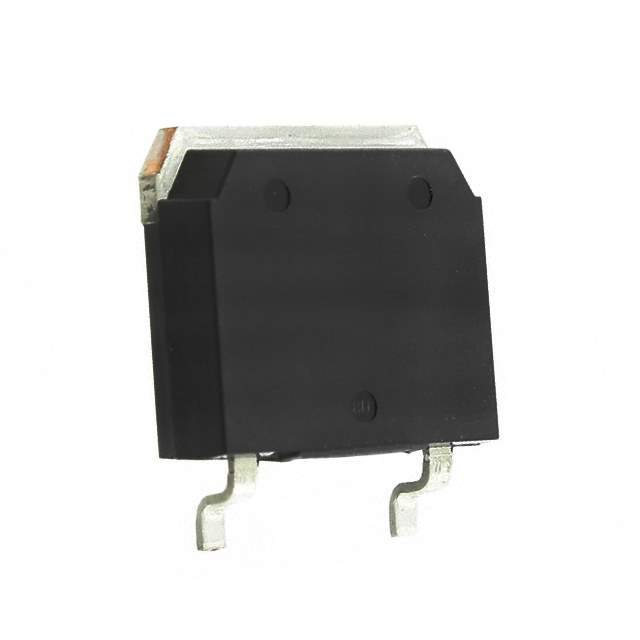

IXGT60N60B2

Name: IXGT60N60B2
Brand: IXYS
SKU: 992494
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IXGT60N60B2
Manufacturer	IXYS
Catalog	IGBTs - Single
Description	IGBT 600V 75A 500W TO268 / IGBT PT 600 V 75 A 500 W Surface Mount TO-268AA
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr	IXYS
Series	HiPerFAST™
Package	Tube
Product Status	Obsolete
IGBT Type	PT
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	75 A
Current - Collector Pulsed (Icm)	300 A
Vce(on) (Max) @ Vge, Ic	1.8V @ 15V, 50A
Power - Max	500 W
Switching Energy	1mJ (off)
Input Type	Standard
Gate Charge	170 nC
Td (on/off) @ 25°C	28ns/160ns
Test Condition	400V, 50A, 3.3Ohm, 15V
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268AA
Base Product Number	IXGT60
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Standard Package	30
Win Source Part Number	992494-IXGT60N60B2
Ultra Librarian 3D Model	Ultra Librarian IXGT60N60B2 CAD Model

Description

The IXYS IXGT60N60B2 is a TO-268-3 packaged IGBT transistor with a maximum power rating of 500W and a collector current rating of 75A.

Breakdown Voltage: 600V
On-State Voltage: 1.8V @ 50A
Switching Energy: 1mJ
Gate Charge: 170nC
Turn-Off Time: 160ns @ 25°C
Turn-On Time: 28ns @ 25°C
Operating Temperature: -55°C to 150°C
Suitable for: high power switching applications, power supplies, and motor control
Status: now obsolete
