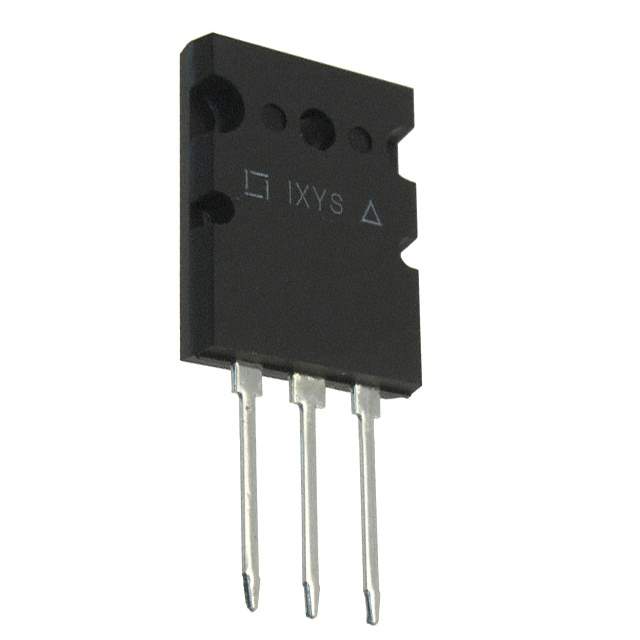

IXGK60N60C2D1 Real Image
Same model may have multiple batches, images only for reference.

IXGK60N60C2D1

Part No IXGK60N60C2D1
Manufacturer IXYS
Catalog IGBTs - Single
Description IGBT 600V 75A 480W TO264 / IGBT PT 600 V 75 A 480 W Through Hole TO-264 (IXGK)
Datasheet
IXGK60N60C2D1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Manufacturer IXYS
Packaging Tube
Product Status Obsolete
IGBT Type PT
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 75 A
Current - Collector Pulsed (Icm) 300 A
Vce(on) (Max) @ Vge, Ic 2.5V @ 15V, 50A
Power - Max 480 W
Switching Energy 400µJ (on), 480µJ (off)
Input Type Standard
Gate Charge 146 nC
Td (on/off) @ 25°C 18ns/95ns
Test Condition 400V, 50A, 2Ohm, 15V
Reverse Recovery Time (trr) 35 ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Through Hole
Case / Package TO-264-3, TO-264AA
Supplier Device Package TO-264 (IXGK)
Base Product Number IXGK60
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 25
Win Source Part Number 1324419-IXGK60N60C2D1
Ultra Librarian 3D Model Ultra Librarian IXGK60N60C2D1 CAD Model

Description

The 1324419-IXGK60N60C2D1 is a single IGBT transistor with a collector-emitter breakdown voltage of 600V and a maximum collector current of 75A.

  • Collector-Emitter Breakdown Voltage: 600V
  • Maximum Collector Current: 75A
  • Maximum On-State Voltage: 2.5V @ 15V, 50A
  • Gate Charge: 146nC
  • Package: TO-264-3, TO-264AA
  • Supplier Device Package: TO-264 (IXGK)
