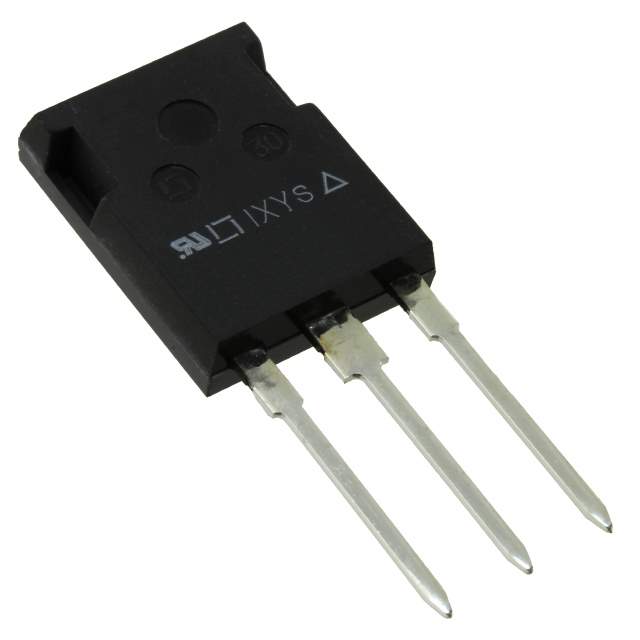

IXDR30N120D1

Name: IXDR30N120D1
Brand: IXYS
SKU: 1351926
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IXDR30N120D1
Manufacturer	IXYS
Catalog	IGBTs - Single
Description	IGBT 1200V 50A 200W ISOPLUS247 / IGBT NPT 1200 V 50 A 200 W Through Hole ISOPLUS247™
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	IXYS
Package	Tube
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	50 A
Current - Collector Pulsed (Icm)	60 A
Vce(on) (Max) @ Vge, Ic	2.9V @ 15V, 30A
Power - Max	200 W
Switching Energy	4.6mJ (on) , 3.4mJ (off)
Input Type	Standard
Gate Charge	120 nC
Test Condition	600V, 30A, 47Ohm, 15V
Reverse Recovery Time (trr)	40 ns
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	ISOPLUS247™
Base Product Number	IXDR30
Standard Package	30
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
California Prop 65	Warning Information
Win Source Part Number	1351926-IXDR30N120D1
Ultra Librarian 3D Model	Ultra Librarian IXDR30N120D1 CAD Model

Description

The IXDR30N120D1 is a single IGBT transistor from IXYS.

Transistor Type: IGBT, Single
Power: 200W
Voltage-Collector Emitter Breakdown (Max): 1200V
Mounting Type: Through Hole
Package: TO-247-3
Gate-Source Voltage (Vgs): ±20V
Operating Temperature: -55°C ~ 150°C (TJ)
Current-Collector (Ic) (Max): 50A
Collector-Emitter Saturation Voltage (Vce(on)): 2.9V @ 15V, 30A
Gate Charge: 120 nC
Reverse Recovery Time (trr): 40 ns
Switching Energy (on): 4.6mJ @ 600V, 30A, 47Ohm, 15V
Switching Energy (off): 3.4mJ @ 600V, 30A, 47Ohm, 15V
