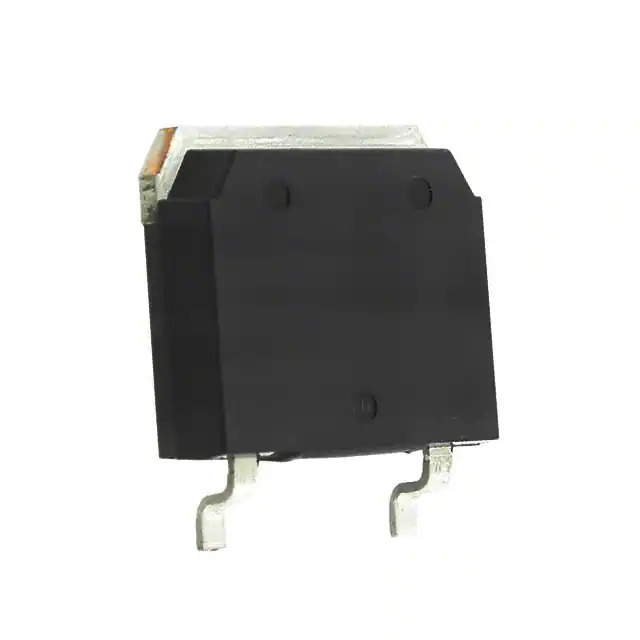

IXBT20N300

Name: IXBT20N300
Brand: IXYS
SKU: 1378699
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IXBT20N300
Manufacturer	IXYS
Catalog	IGBTs - Single
Description	IGBT 3000V 50A 250W TO268
Datasheet	IXBT20N300 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	IXYS
Series	BIMOSFET™
Package	Tube
Product Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	3000 V
Current - Collector (Ic) (Max)	50 A
Current - Collector Pulsed (Icm)	140 A
Vce(on) (Max) @ Vge, Ic	3.2V @ 15V, 20A
Power - Max	250 W
Switching Energy	-
Input Type	Standard
Gate Charge	105 nC
Td (on/off) @ 25°C	-
Test Condition	-
Reverse Recovery Time (trr)	1.35 µs
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
Supplier Device Package	TO-268AA
Base Product Number	IXBT20
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1378699-IXBT20N300
Ultra Librarian 3D Model	Ultra Librarian IXBT20N300 CAD Model

Description

The IXYS 1378699-IXBT20N300 is a single IGBT transistor with a collector current (Ic) of 50A and a collector-emitter breakdown voltage (Vce) of 3000V.

Collector Current (Ic): 50A
Collector-Emitter Breakdown Voltage (Vce): 3000V
Power Dissipation: 250W
Gate Charge: 105nC
Series: BIMOSFET™
Manufacturer: IXYS
Product Status: Active
Mounting Type: Surface Mount
Package / Case: TO-268-3, D³Pak
