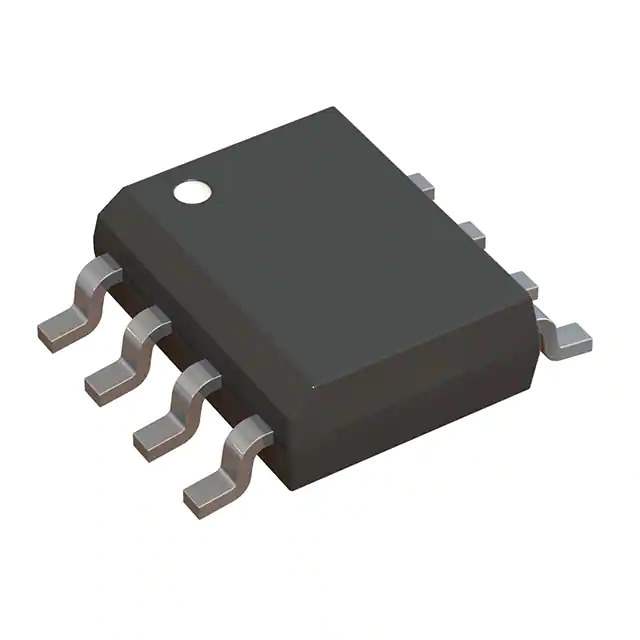

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr IXYS
Package Tube
Product Status Obsolete
Programmable Not Verified
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel, P-Channel MOSFET
Voltage - Supply 4.5V ~ 30V
Logic Voltage - VIL, VIH 0.8V, 3V
Current - Peak Output (Source, Sink) 3A, 3A
Input Type Non-Inverting
Rise / Fall Time (Typ) 18ns, 18ns
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number IX4424
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
California Prop 65 Warning Information
Win Source Part Number 849199-IX4424N
Ultra Librarian 3D Model Ultra Librarian IX4424N CAD Model

Description

The IX4424N is a gate driver integrated circuit designed for power management applications.

  • Mounting Type: surface mount
  • Voltage Supply: 4.5V to 30V
  • Channels: two independent channels
  • Driven Configuration: low-side
  • MOSFET Gate Type: N-Channel and P-Channel
  • Logic Voltage Levels: VIL: 0.8V, VIH: 3V
  • Peak Output Current: 3A source/sink
  • Rise/Fall Time: 18ns
  • Application: power management
  • Standard Package: 100 pcs
  • Status: obsolete
