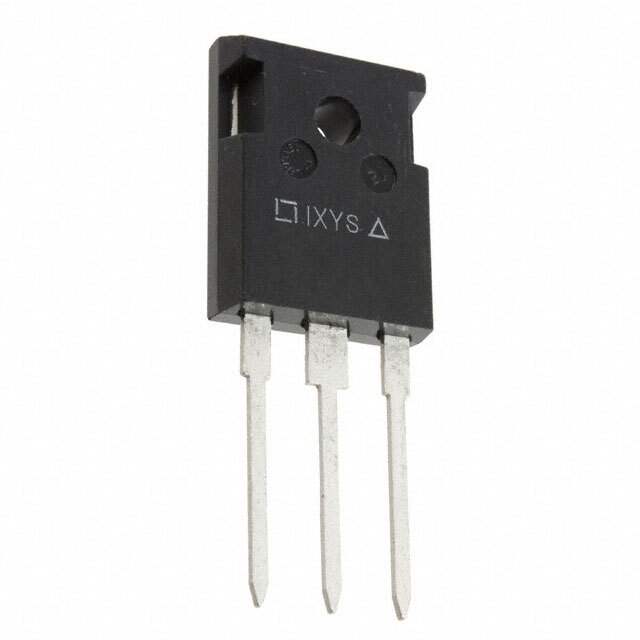

DSSK50-01A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) (per Diode) 25A
Voltage - Forward (Vf) (Max) @ If 800mV @ 25A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 100V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 203487-DSSK50-01A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DSSK50-01A CAD Model

Description

Product Description

The DSSK50-01A is engineered to deliver exceptional performance in rectification applications. This Schottky diode's efficient design provides low reverse current and high efficiency, catering to the needs of modern power solutions.

Features and Benefits

  • Low Reverse Current: Reduces energy leakage for better efficiency.
  • High Efficiency: Suitable for modern electronic devices.
  • Compact and Lightweight: Ease of integration in various applications.

Applications

  • Consumer Electronics
  • Industrial Power Supplies
  • Telecommunication Circuits

Additional Details

The DSSK50-01A is a reliable choice for engineers seeking performance and efficiency in compact electronic designs.
