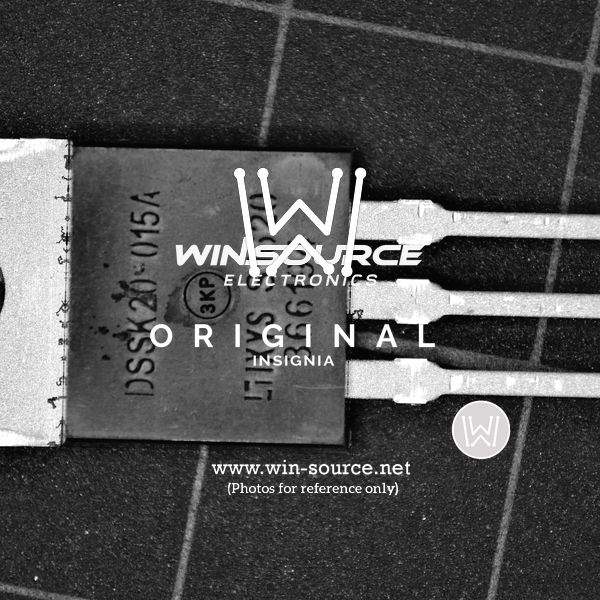

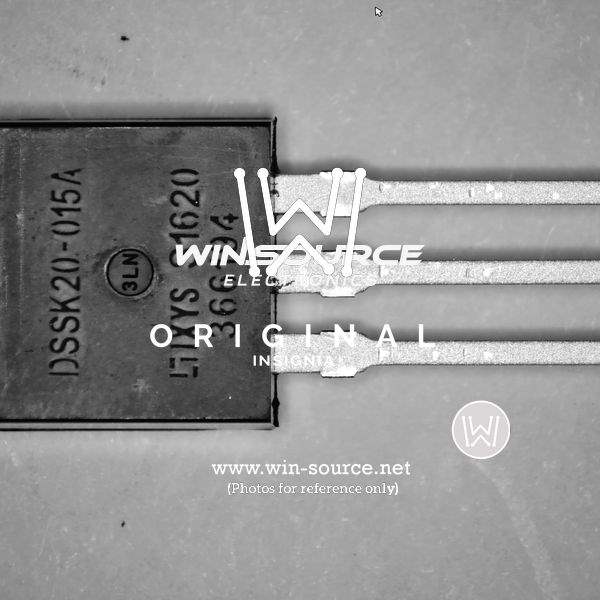

DSSK20-015A Real Image DSSK20-015A Real Image1 DSSK20-015A Real Image2
Same model may have multiple batches, images only for reference.
DSSK20-015A Real Image DSSK20-015A Real Image1 DSSK20-015A Real Image2
DSSK20-015A Real Image DSSK20-015A Real Image1 DSSK20-015A Real Image2
Same model may have multiple batches, images only for reference.

DSSK20-015A

Part No DSSK20-015A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 150V TO220
Datasheet
DSSK20-015A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - Forward (Vf) (Max) @ If 790mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 150V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-220AB
Win Source Part Number 050980-DSSK20-015A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DSSK20-015A CAD Model

Description

Product Description

The DSSK20-015A is a robust Schottky diode designed for power regulation and high-frequency applications. With its fast switching capability and low forward voltage drop, it is ideal for enhancing efficiency in power conversion systems.

Features and Benefits

  • Fast Switching Speed: Optimizes performance in high-frequency circuits.
  • Low Forward Voltage: Minimizes energy loss in power systems.
  • High Reliability: Designed to withstand demanding operational conditions.

Applications

  • Switching Power Supplies
  • Rectification Circuits
  • Battery Chargings

Additional Details

The DSSK20-015A comes in a compact package, making it suitable for space-constrained applications without sacrificing performance.
