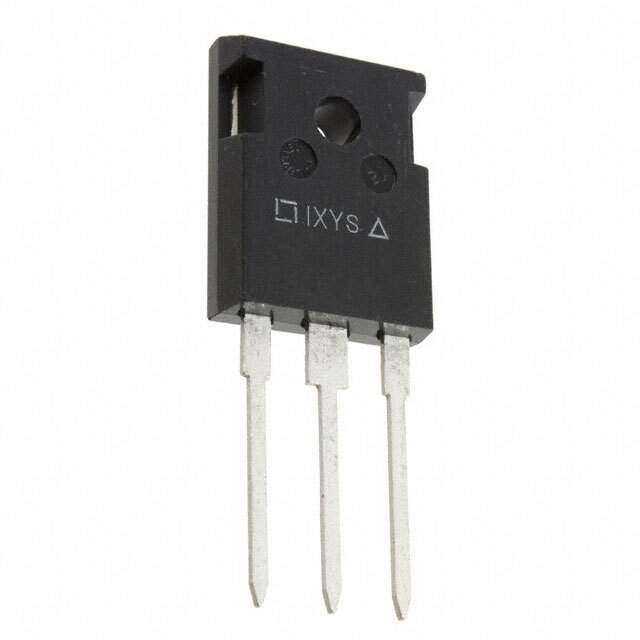

DSEC30-04A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Series HiPerFRED
Packaging Tube
Part Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 400V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Maximum) @ If 1.47V @ 15A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 100μA @ 400V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-247AD
Win Source Part Number 1169811-DSEC30-04A
Manufacturer Homepage www.ixys.com
Popularity Medium
Supply and Demand Status Balance
Family Name DSEC30-04A
Introduction Date July 11, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian DSEC30-04A CAD Model

Description

IXYS HiPerFRED diode is a standard device with a reverse recovery time of 30ns and a current reverse leakage of 100μA @ 400V.

  • Diode Configuration: 1 pair common cathode
  • Average Rectified Current: 15A per diode
  • Mounting Style: through-hole
  • Packaging: TO-3P-3 full pack
  • Maximum Forward Voltage: 1.47V @ 15A
  • Maximum Reverse Voltage: 400V
  • The device is obsolete and has a balance supply and demand status.
