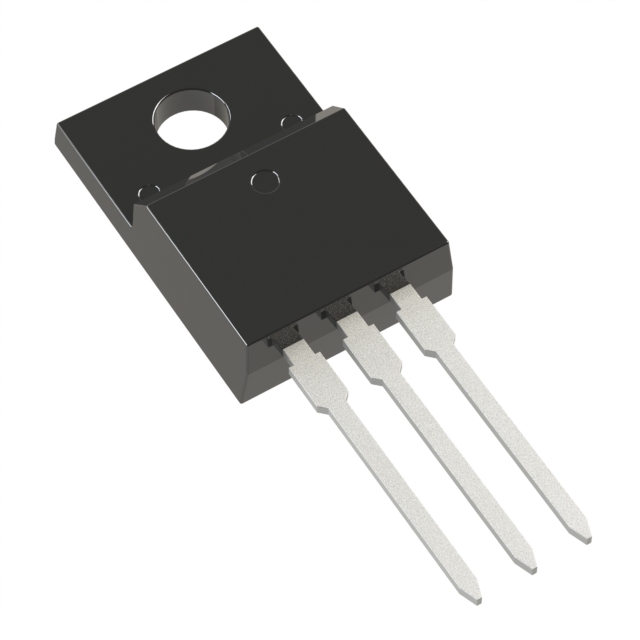

Same model may have multiple batches, images only for reference.
DSB30C60PB IXYS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DSB30C60PB

Part No DSB30C60PB
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARR SCHOTT 60V 15A TO2203
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Diode Configuration 1 Pair Common Cathode
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 780 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 mA @ 60 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Case / Package TO-220-3
Supplier Device Package TO-220-3
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1492403-DSB30C60PB
Ultra Librarian 3D Model Ultra Librarian DSB30C60PB CAD Model

Description

N
