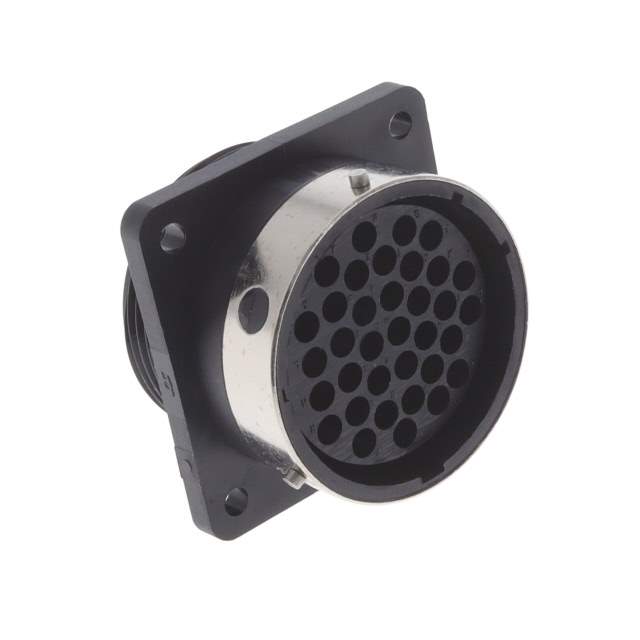

TR2235RFS1NB

Part No TR2235RFS1NB
Manufacturer ITT Cannon, LLC
Catalog Circular Connectors - Housings
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr ITT Cannon, LLC
Series Trident Ringlock (TR)
Package Bulk
Connector Type Receptacle Housing
Type For Female Sockets
Number of Positions 35
Shell Size - Insert 22-35
Contact Type Crimp, Solder and Solder Cup
Mounting Type Panel Mount
Mounting Feature Flange
Fastening Type Detent Lock
Orientation Keyed
Shell Material Polyamide (PA), Nylon
Housing Color Black
Material Flammability Rating UL94 V-0
Shielding Unshielded
Note Contacts Not Included
Contact Shape Circular
Temperature Range - Operating -55°C ~ 105°C
Base Product Number TR223
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1315557-TR2235RFS1NB
Ultra Librarian 3D Model Ultra Librarian TR2235RFS1NB CAD Model

Description

The ITT Cannon, LLC TR2235RFS1NB is a Trident Ringlock (TR) circular connector housing for female sockets. ITT Cannon, LLC

  • Positions: 35
  • Fastening Type: Detent Lock
  • Contact Type: Crimp, Solder and Solder Cup
  • Package: Bulk
  • Series: TR223
  • ECCN: EAR99
  • HTSUS: 8538.90.6000
  • Base Product Number: TR223
