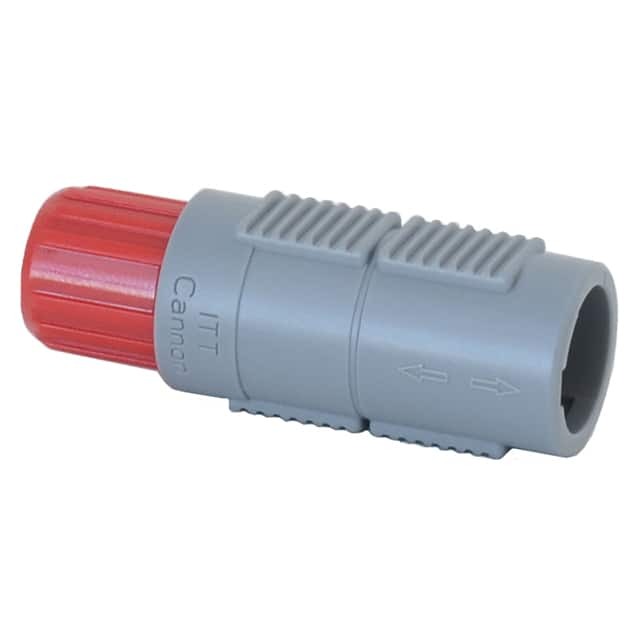

PLC1G223C03
Same model may have multiple batches, images only for reference.

PLC1G223C03

Part No PLC1G223C03
Manufacturer ITT Cannon, LLC
Catalog Circular Connectors - Assemblies
Description CIRCULAR / 3 Position Circular Connector Receptacle, Female Sockets Solder Cup
Datasheet
PLC1G223C03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr ITT Cannon, LLC
Series PL
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 3
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Latch Lock, Push-Pull
Orientation C
Primary Material Plastic
Shell Material Polysulfone (PSU)
Contact Finish - Mating Gold
Color Gray, Red
Ingress Protection IP50 - Dust Protected
Material Flammability Rating UL94 V-0
Features Backshell
Shielding Unshielded
Current Rating (Amps) 10A
Cable Opening 0.209" ~ 0.256" (5.30mm ~ 6.50mm)
Temperature Range - Operating -50°C ~ 150°C
Backshell Material, Plating Polysulfone (PSU)
Contact Material Copper Alloy
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insert Material Plastic
Applications Industrial, Medical, Testing Equipment & Measurement
Base Product Number PLC1G
Standard Package 25 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 849304-PLC1G223C03
Ultra Librarian 3D Model Ultra Librarian PLC1G223C03 CAD Model

Description

The PL series circular connector assembly is a versatile connector designed for industrial, medical, and testing equipment applications. ITT Cannon, LLC is the manufacturer.

  • Connector Type: Receptacle
  • Number of Positions: Not specified
  • Gender: Female
  • Termination Type: Solder Cup
  • Fastening Type: Latch Lock, Push-Pull
  • Material: Copper Alloy
  • Ingress Protection: IP50 (Dust Protected)
  • Flammability Rating: UL94 V-0
  • Temperature Range: -50°C to 150°C
  • Product Status: Active
