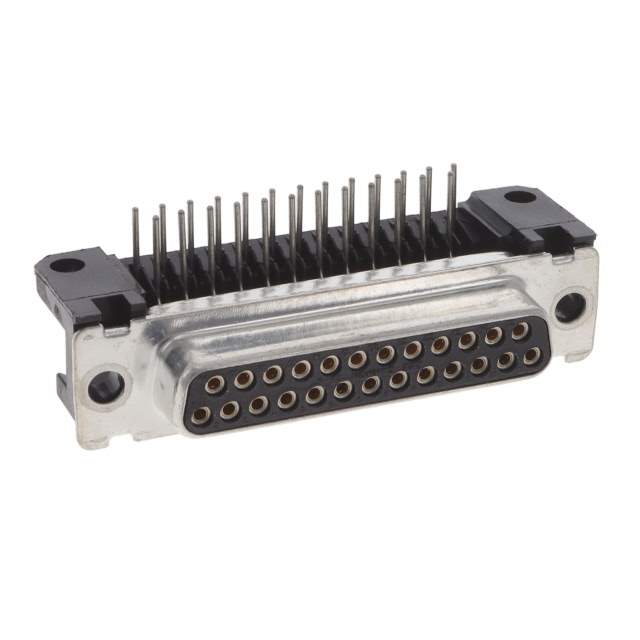

DB-25S-1A2N-A197 Real Image
Same model may have multiple batches, images only for reference.

DB-25S-1A2N-A197

Part No DB-25S-1A2N-A197
Manufacturer ITT Cannon, LLC
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 25POS R/A SLDR / 25 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr ITT Cannon, LLC
Series Original D
Package Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A
Features Mounting Brackets
Color Black
Contact Form Machined
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Wire Gauge 20-28 AWG
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Standard Package 48
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1336940-DB-25S-1A2N-A197
Ultra Librarian 3D Model Ultra Librarian DB-25S-1A2N-A197 CAD Model

Description

The ITT Cannon D-Sub Connector Assembly is a female receptacle with 25 signal contacts, designed for use in electronic devices that require a high number of connections.

  • Manufacturer: ITT Cannon
  • Contact Gender: female
  • Positions: 25
  • Features: mounting brackets, machined
  • Contact Form: machined
  • Contact Finish: flash gold
  • Contact Material: copper alloy
  • Shell Material: steel
  • Shell Finish: tin plated
  • Mounting Type: panel mount, through hole, right angle
  • Temperature Range: -55°C to 125°C
  • Material Flammability Rating: UL94 V-0
  • ECCN: EAR99
