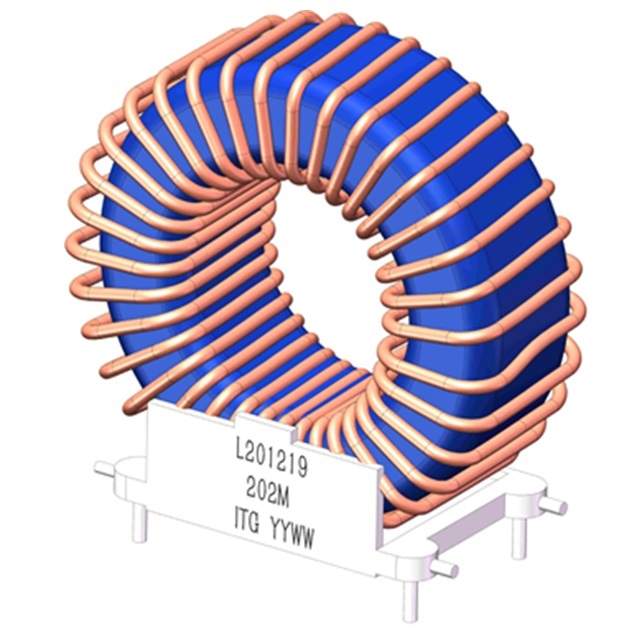

Same model may have multiple batches, images only for reference.

L201219-202MHF

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	L201219-202MHF
Manufacturer	ITG Electronics, Inc.
Catalog	Fixed Inductors
Description	FIXED IND 1.97MH 3.3A 195MOHM TH / 1.97 mH Unshielded Toroidal Inductor 3.3 A 195mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
Datasheet	L201219-202MHF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	ITG Electronics, Inc.
Series	L201219
Package	Tray
Type	Toroidal
Material - Core	Alloy Powder
Inductance	1.97 mH
Tolerance	±20%
Current Rating (Amps)	3.3 A
Current - Saturation (Isat)	2.1A
Shielding	Unshielded
DC Resistance (DCR)	195mOhm Max
Temperature Range - Operating	-55°C ~ 130°C
Inductance Frequency - Test	10 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder, 4 Leads (Open)
Dimension	1.319" L x 0.787" W (33.50mm x 20.00mm)
Height - Seated (Max)	1.457" (37.00mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4050
Other Names	3013-L201219-202MHF
Standard Package	20
Win Source Part Number	1202761-L201219-202MHF
Ultra Librarian 3D Model	Ultra Librarian L201219-202MHF CAD Model

Alternative Products

Description

The L201219-202MHF is a high-quality fixed inductor that is perfect for use in a wide range of applications.

Type: Toroidal
Shielding: Unshielded
Package: Tray
Mounting: Through Hole
DC Resistance (DCR): 195mOhm Max
Current Rating (Amps): 3.3 A
