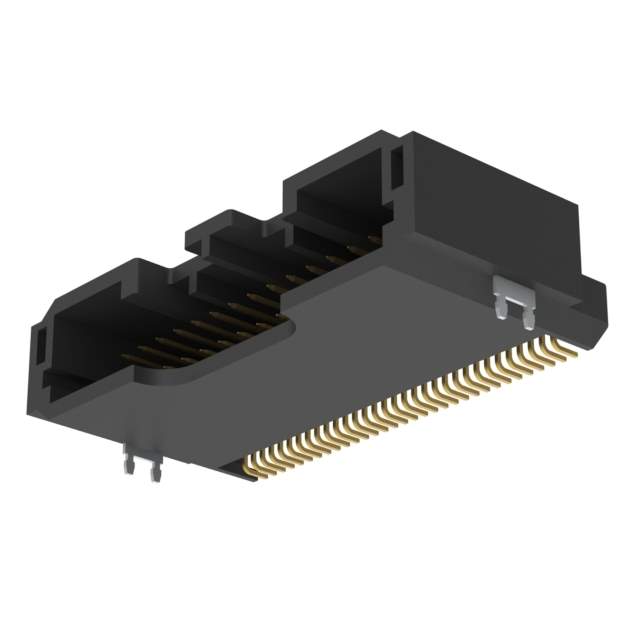

Same model may have multiple batches, images only for reference.

IMSA-13065B-2-32L-TR

Get a Quote

Part No	IMSA-13065B-2-32L-TR
Manufacturer	IRISO
Catalog	Rectangular Connectors
Description	HEADER SMT RA 32POS KEY-C / Connector Header Surface Mount, Right Angle 32 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	IRISO USA Inc.
Series	13065B
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	32
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.366" (9.30mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyphenylene Sulfide (PPS)
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	IMSA-13065B
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	2248-IMSA-13065B-32L-TR,IMSA-13065B-32L-TR,2248-IMSA-13065B-32L-TR-ND,2248-IMSA-13065B-2-32L-TR
Standard Package	1
Win Source Part Number	1157300-IMSA-13065B-2-32L-TR
Ultra Librarian 3D Model	Ultra Librarian IMSA-13065B-2-32L-TR CAD Model

Alternative Products

Description

This IMSA-13065B-2-32L-TR connector from IRISO USA Inc. is a high-quality electronic component designed to provide reliable connectivity for your devices.

Positions: 32
Rows: 2
Contact Material: Copper alloy
Contact Plating: Tin
Housing Material: Polyphenylene sulfide (PPS)
Housing Color: Black
Mounting: Surface mount, right angle
Design: Shrouded - 4 Wall
Pitch-Mating: 0.079" (2.00mm)
Row Spacing-Mating: 0.098" (2.50mm)
Flammability Rating: UL94 V-0
RoHS Compliant: Yes
Quality: High-quality electronic component that is perfect for a wide range of applications.
