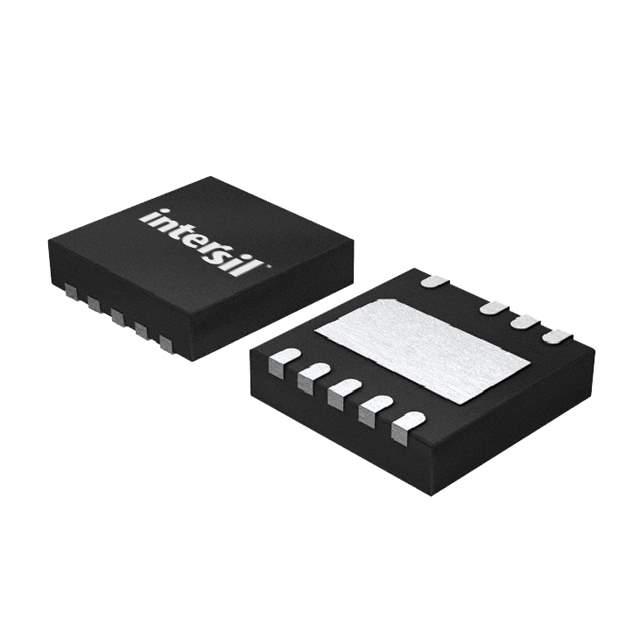

ISL89400AR3Z-T Real Image
Same model may have multiple batches, images only for reference.

ISL89400AR3Z-T

Part No ISL89400AR3Z-T
Manufacturer Intersil
Catalog PMIC - Gate Drivers
Description IC MOSFET DRVR 100V 1.25A 9-DFN / Driver 1.25A 2-OUT High and Low Side Half Brdg Non-Inv 9-Pin DFN EP T/R
Datasheet
ISL89400AR3Z-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Intersil
Packaging Reel package
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Operating Supply Voltage 9 V ~ 14 V
Logic Voltage - VIL, VIH 3.7V, 7.4V
Current - Peak Output (Source, Sink) 1.25A, 1.25A
High Side Voltage - Max (Bootstrap) 100V
Rise / Fall Time (Typ) 16ns, 16ns
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting SMD
Package 10-VFDFN Exposed Pad (9 Leads)
Manufacturer Package 9-DFN-EP (3x3)
Win Source Part Number 777457-ISL89400AR3Z-T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 6k pcs
Family Name ISL89400
Introduction Date April 10, 2001
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian ISL89400AR3Z-T CAD Model

Description

The ISL89400AR3Z-T is an independent half-bridge driver integrated circuit manufactured by Intersil.

  • Operating Supply Voltage: 9 V to 14 V
  • Package: 10-VFDFN Exposed Pad (9 Leads)
  • Channel Type: Independent
  • Driven Configuration: Half-Bridge
  • Gate Type: N-Channel MOSFET
  • Logic Voltage - VIL, VIH: 3.7V, 7.4V
  • Current - Peak Output (Source, Sink): 1.25A, 1.25A
  • High Side Voltage - Max (Bootstrap): 100V
  • Rise/Fall Time (Typ): 16ns, 16ns
  • Family: Integrated Circuits (ICs)
  • ECCN: EAR99
  • Country of Origin: Malaysia
  • Estimated EOL Date: 2029
  • Halogen Free: Yes
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Quantity per Package: 6k pcs
