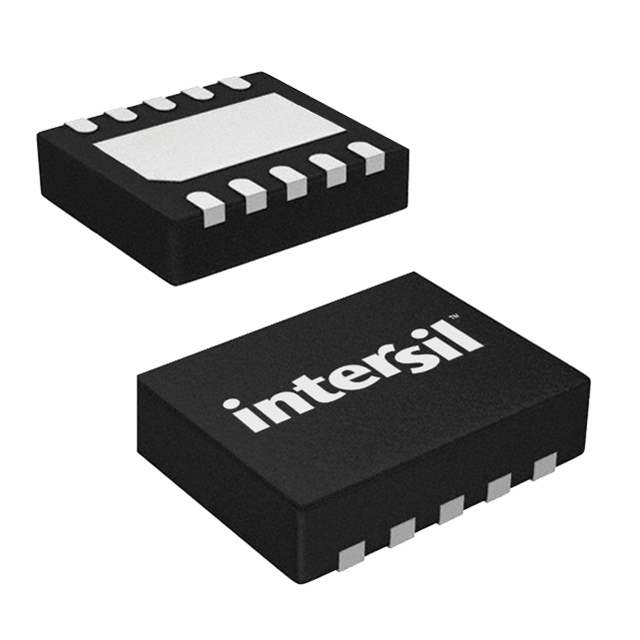

ISL84684IRZ-ND Real Image
Same model may have multiple batches, images only for reference.

ISL84684IRZ-ND

Part No ISL84684IRZ-ND
Manufacturer Intersil
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH DUAL SPDT 10TDFN
Datasheet
ISL84684IRZ-ND Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Switch Circuit SPDT
Number of Circuits 2
Max On Resistance 500 mOhm
Channel-to-Channel Matching (ΔRon) 55 mOhm
Single Supply Voltage (V+) 1.65 V to 3.6 V
Max Switch Time (Ton,Toff) 50ns, 27ns
Charge Injection 94pC
Channel Capacitance(CS off, CD off) 65pF
Max Leakage Current (IS off) 4nA
Crosstalk -85dB @ 100kHz
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 10-TDFN (3x3)
Win Source Part Number 205595-ISL84684IRZ-ND
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ISL84684IRZ-ND CAD Model

Description

The Intersil ISL84684IRZ-ND is a 2-circuit SPDT integrated circuit designed for electronic circuits.

  • Temperature range: -40°C to 85°C
  • Packaging: tube/rail
  • Supply and demand status: balanced
  • Channel-to-channel matching: 55 mOhm
  • Max on resistance: 500 mOhm
  • Max switch time: 50ns, 27ns
  • Channel capacitance: 65pF
  • Max leakage current: 4nA
  • Charge injection: 94pC
  • Case/Package: 10-TDFN (3x3)
