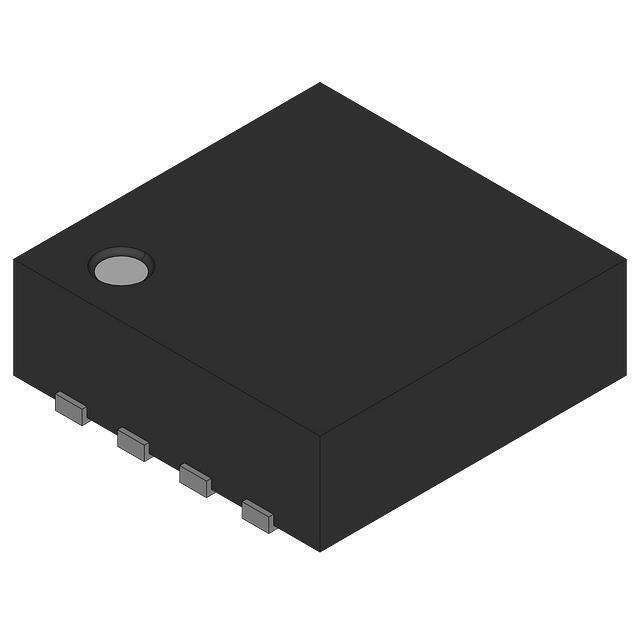

ISL6605CR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>Gate Drivers
Manufacturer Intersil
Packaging Tube
Product Status Obsolete
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Voltage - Supply 4.5V ~ 5.5V
Logic Voltage - VIL, VIH 1V, 2V
Current - Peak Output (Source, Sink) 2A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 33 V
Rise / Fall Time (Typ) 8ns, 8ns
Temperature Range - Operating 0°C ~ 125°C (TJ)
Mounting Surface Mount
Case / Package 8-VQFN Exposed Pad
Supplier Device Package 8-QFN (3x3)
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number HARISLISL6605CR,2156-ISL6605CR-IL
Standard Package 100
Win Source Part Number 1320007-ISL6605CR
Ultra Librarian 3D Model Ultra Librarian ISL6605CR CAD Model

Description

The Intersil ISL6605CR is a dual high-speed power MOSFET driver that is used in synchronous half-bridge applications.

  • Manufacturer: Intersil
  • Input Type: Non-Inverting
  • Gate Type: N-channel MOSFETs
  • Output Current (Max): 2A
  • Bootstrap Voltage (Max): 33V
  • Supply Voltage: 4.5V to 5.5V
  • Temperature Range: 0°C to 125°C
  • Package: 8-QFN (3x3)
  • REACH: Affected
