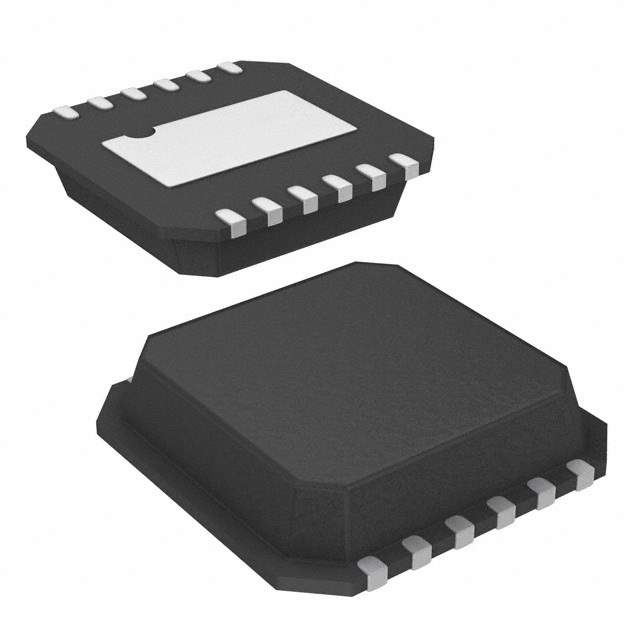

HIP2104FRAANZ-T7A Real Image
Same model may have multiple batches, images only for reference.

HIP2104FRAANZ-T7A

Part No HIP2104FRAANZ-T7A
Manufacturer Intersil
Catalog PMIC - Gate Drivers
Description IC DRIVER HALF-BRIDGE 12-DFN
Datasheet
HIP2104FRAANZ-T7A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 4.5 V to 14 V
Logic Voltage - VIL, VIH 1.63V, 2.06V
Current - Peak Output (Source, Sink) 1A, 1A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 60V
Rise and Fall Time 8ns, 2ns
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 12-DFN (4x4)
Win Source Part Number 1043420-HIP2104FRAANZ-T7A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HIP2104FRAANZ-T7A CAD Model

Description

The Intersil HIP2104FRAANZ-T7A is an independent, non-inverting, and half-bridge driver integrated circuit.

  • Drivers: 2
  • Current (Sourcing/Sinking): Up to 1A
  • High-Side Voltage: Up to 60V
  • Supply Voltage Range: 4.5V to 14V
  • Rise Time: 8ns
  • Fall Time: 2ns
  • Package: 12-DFN (4x4)
  • Popularity: popular
