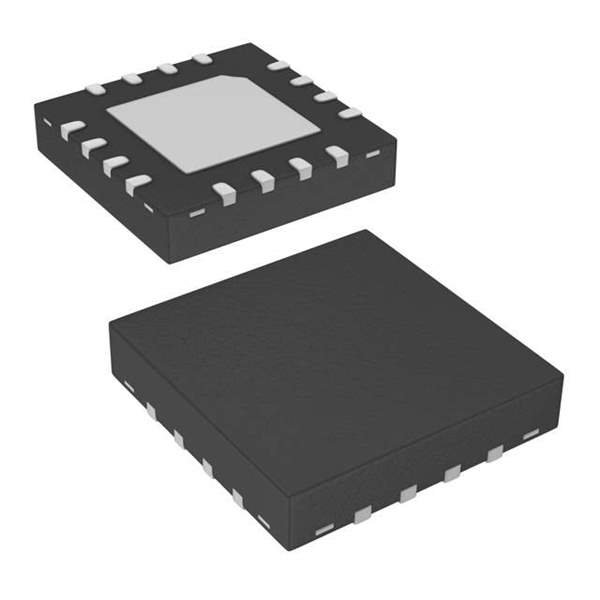

EL5420CL-T13 Real Image
Same model may have multiple batches, images only for reference.

EL5420CL-T13

Part No EL5420CL-T13
Manufacturer Intersil
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP VFB 8MHZ RRO 16QFN
Datasheet
EL5420CL-T13 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Obsolete(EOL)
Amplifier Type Voltage Feedback
Number of Circuits 4
Output Type Rail-to-Rail
Slew Rate 10 V/μs
Gain Bandwidth Product (GBP) 8MHz
-3db Bandwidth 12MHz
Current - Input Bias 2nA
Voltage - Input Offset 2mV
Operating Supply Current 500μA
Channel Output Current 30mA
Supply Voltage - Operating 4.5 V to 16.5 V, ±2.25 V to 8.25 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 16-QFN-EP (4x4)
Win Source Part Number 1036168-EL5420CL-T13
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EL5420CL-T13 CAD Model

Description

The Intersil EL5420CL-T13 is an Obsolete (EOL) Integrated Circuit that has a packaging of Reel - TR.

  • Packaging: Reel - TR
  • Number of Circuits: 4
  • Mounting: SMD (SMT)
  • Output Type: Rail-to-Rail
  • -3db Bandwidth: 12MHz
  • Amplifier Type: Voltage Feedback
  • Slew Rate: 10 V/μs
  • Current - Input Bias: 2nA
  • Voltage - Input Offset: 2mV
  • Supply and Demand Status: Sufficient
  • Temperature Range: -40°C to 85°C
  • Case/Package: 16-QFN-EP (4x4)
  • Operating Supply Voltage: 4.5 V to 16.5 V, ±2.25 V to 8.25 V
  • Operating Supply Current: 500μA
  • Channel Output Current: 30mA
  • Gain Bandwidth Product (GBP): 8MHz
