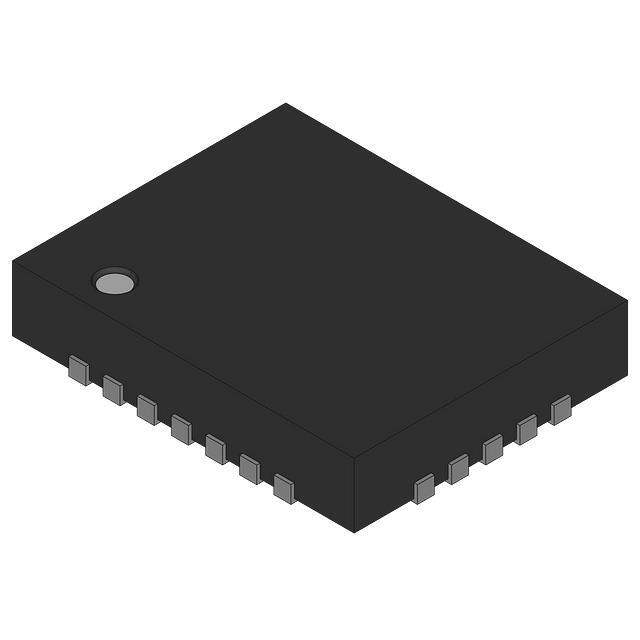

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Obsolete(EOL)
Protocol DSL
Number of Drivers/Receivers 2/0
Supply Voltage - Operating 5 V to 12 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 24-QFN-EP (4x4)
Win Source Part Number 141507-EL1528CL
Popularity Medium
Supply and Demand Status Limited
Quantity per package 90
Ultra Librarian 3D Model Ultra Librarian EL1528CL CAD Model

Description

EL1528CL

The EL1528CL is equipped with advanced circuitry to ensure optimal performance in multi-channel communication setups. It's engineered to deliver consistent high-speed amplification with minimal distortion.

  • Applications:
    • Broadband networks
    • High-speed data transmission
    • Multi-channel audio systems
  • Features and Benefits:
    • Maintains signal integrity across extensive bandwidths
    • Integrated protection features increase durability
    • Operates with reduced harmonic distortion
  • Additional Details:
    • Support for differential signaling
    • Compact form factor for easy integration
    • Compliance with industry standards
