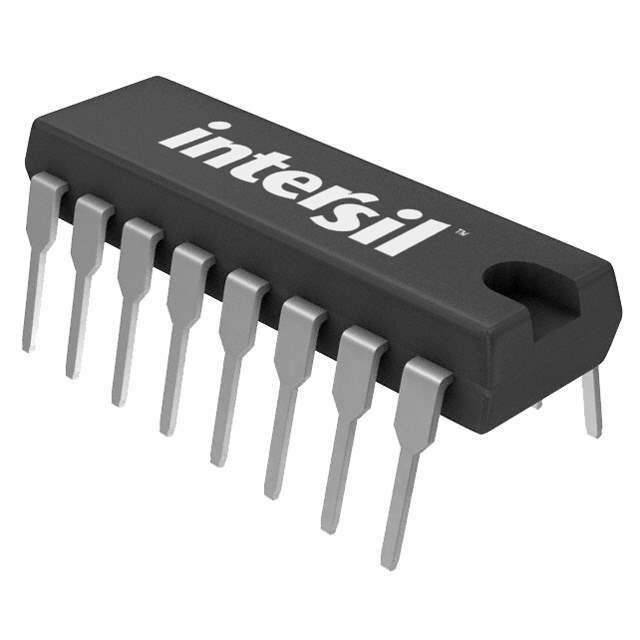

DG409DJZ Real Image
Same model may have multiple batches, images only for reference.

DG409DJZ

Part No DG409DJZ
Manufacturer Intersil
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC MULTIPLEXER DUAL 4X1 16DIP / Analog Multiplexer Dual 4:1 16-Pin PDIP Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Tube/Rail
Status Active
Switch Circuit SP4T
Number of Circuits 2
Max On Resistance 100 Ohm
Channel-to-Channel Matching (ΔRon) 15 Ohm (Max)
Single Supply Voltage (V+) 5 V to 34 V
Dual Supply Voltage(V±) ±5 V to 20 V
Max Switch Time (Ton,Toff) 150ns, 150ns
Charge Injection 20pC
Channel Capacitance(CS off, CD off) 3pF, 14pF
Max Leakage Current (IS off) 500pA
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 16-PDIP
Win Source Part Number 130762-DG409DJZ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Signal Processing, Communications & Networking, Audio
Family Name DG409
Introduction Date April 27, 1999
ECCN EAR99
Country of Origin China, Malaysia, Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian DG409DJZ CAD Model

Description

DG409DJZ Precision Analog Multiplexer

The DG409DJZ is engineered for enhanced precision in analog multiplexing applications. It features optimized channel switching capabilities that provide robust signal integrity under diverse conditions.

  • Fast Switching Time: Provides quick signal routing.
  • Excellent Channel-to-Channel Isolation: Minimizes cross-talk and interference.

Applications and Projects:

  • Broadcast Equipment
  • High-Fidelity Audio Systems
  • Automated Test Equipment (ATE)

It is an ideal choice for high-accuracy systems requiring efficient multiplexing solutions.
