Same model may have multiple batches, images only for reference.

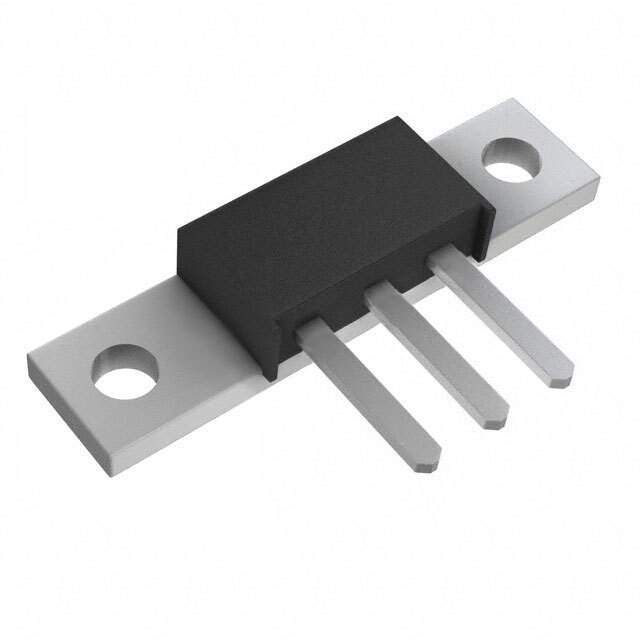

60CNQ035 Real Image
Same model may have multiple batches, images only for reference.

60CNQ035

Part No 60CNQ035
Manufacturer International Rectifier
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE SCHOTTKY 35V 30A PRM3
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer INTERNATIONAL RECTIFIER
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 35V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Maximum) at If 640mV at 30A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 5mA at 35V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package PRM3
Supplier Device Package PRM3
Manufacturer Pack Quantity 48
MSL Level 1 (Unlimited)
Win Source Part Number 1129561-60CNQ035
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 60CNQ035 CAD Model

Description

The INTERNATIONAL RECTIFIER 1129561-60CNQ035 is a Schottky diode with a maximum reverse voltage of 35V.

  • Manufacturer: INTERNATIONAL RECTIFIER
  • Maximum Reverse Voltage: 35V
  • Forward Voltage: 640mV @ 30A
  • Reverse Leakage Current: 5mA @ 35V
  • Average Rectified Current: 30A
  • Recovery Time: 200mA (Io)
  • Diode Configuration: 1 Pair Common Cathode
  • Junction Temperature: -55°C to 150°C
  • Package: PRM3
  • Mounting: Through hole
  • Category: Discrete semiconductor products
