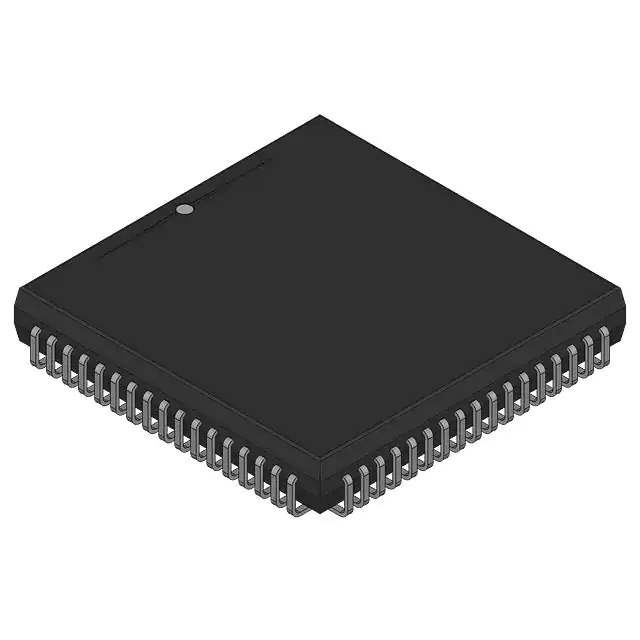

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microprocessors
Mfr Intel
Series i186
Package Tube
Product Status Obsolete
Core Processor 80C186
Number of Cores/Bus Width 1 Core, 16-Bit
Speed 20MHz
RAM Controllers DRAM
Graphics Acceleration No
Voltage - I/O 5.0V
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 68-LCC (J-Lead)
Supplier Device Package 68-PLCC
Standard Package 1 pcs
ECCN EAR99
HTSUS 8542.31.0001
Win Source Part Number 937139-TN80C188EA20
Ultra Librarian 3D Model Ultra Librarian TN80C188EA20 CAD Model

Description

The 937139-TN80C188EA20 is an integrated circuit (IC) belonging to the i186 series of microprocessors.

  • Series: i186
  • Core Processor: 80C186
  • Cores: 1
  • Bus Width: 16 bits
  • Speed: 20MHz
  • RAM Controllers: DRAM
  • Voltage (I/O): 5.0V
  • Package: 68-LCC (J-Lead)
  • Mounting: Surface Mount
  • Temperature Range: 0°C to 70°C (TA)
  • Status: Obsolete
