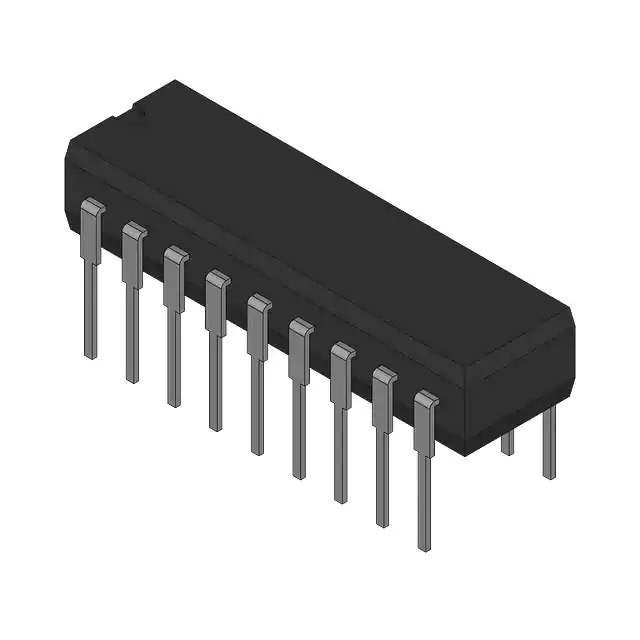

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Intel
Package Bulk
Product Status Active
Programmable Not Verified
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 4Kbit
Memory Organization 1K x 4
Memory Interface Parallel
Write Cycle Time - Word, Page 200ns
Access Time 200 ns
Voltage - Supply 4.5V ~ 5.5V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 18-CDIP
Supplier Device Package 18-CDIP
Standard Package 44 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0041
Win Source Part Number 922861-LD2114AL4
Ultra Librarian 3D Model Ultra Librarian LD2114AL4 CAD Model

Description

The Intel 922861-LD2114AL4 is a memory IC designed for volatile SRAM (Asynchronous) technology.

  • Technology: Volatile SRAM (Asynchronous)
  • Memory Size: 4Kbit
  • Access Time: 200 ns
  • Voltage Supply: 4.5V to 5.5V
  • Mounting: Through-Hole
  • Package/Case: 18-CDIP
  • Supplier Device Package: 18-CDIP
  • Temperature Range: -40°C to 85°C
  • Memory Format: SRAM
  • Memory Interface: Parallel
  • ECCN: EAR99
  • Counterfeit Chance: 64%
  • HTSUS: 8542.32.0041
  • Manufacturer: Intel
  • Part Status: Active
