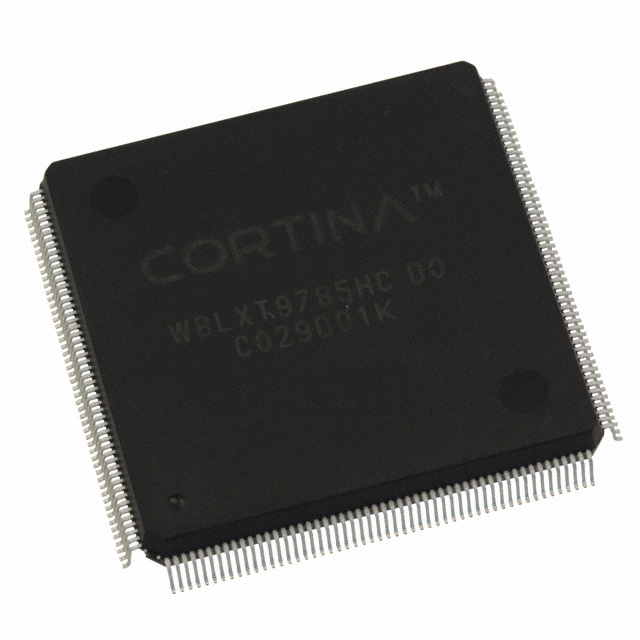

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family Interface - Drivers, Receivers, Transceivers
Manufacturer Intel
Packaging Tube
Type Transceiver
Protocol Ethernet
Number of Drivers/Receivers 8/8
Operating Supply Voltage 2.38 V ~ 3.46 V
Mounting Style SMD/SMT
Package 208-BFQFP
Manufacturer Device Package 208-PQFP (28x28)
Win Source Part Number 140808-HBLXT9785HC.D0
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HBLXT9785HC.D0 CAD Model

Description

The Intel 140808-HBLXT9785HC.D0 is a high-performance transceiver integrated circuit designed for Ethernet protocol.

  • Package: 208-BFQFP
  • Manufacturer Device Package: 208-PQFP (28x28)
  • Drivers/Receivers: 8 drivers and 8 receivers
  • Operating Supply Voltage: 2.38 V to 3.46 V

It is ideal for use in interface drivers, receivers, and transceivers.
