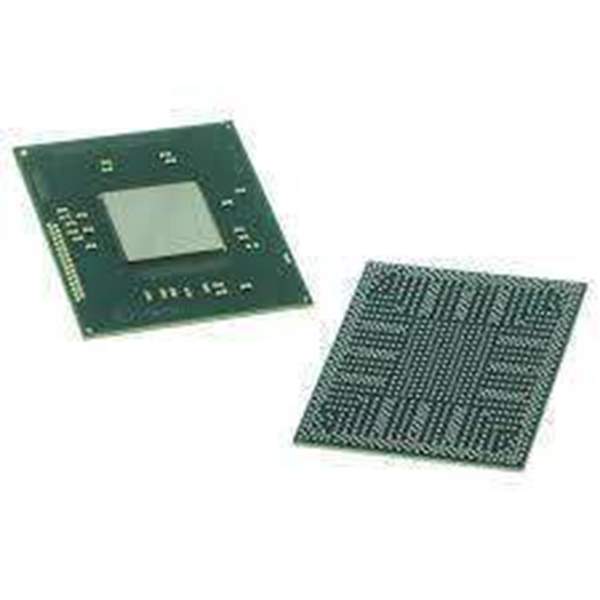

FH8065301542215S R3UX

Part No FH8065301542215S R3UX
Manufacturer Intel
Catalog Embedded Computers
Description CPU - Central Processing Units Intel Atom Processor E3826 (1M Cache, 1.46 GHz) FC-BGA13F, Tray
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308383-FH8065301542215S R3UX
Manufacturer Intel
Category CPU - Central Processing Units
Core Type Intel Atom E3826
Data Bus Width 64 bit
Number of Cores 2 Core
Package / Case FCBGA-1170
Clock Frequency 1.46 GHz
Memory Size 8 GB
Memory Type DDR3L
Family Intel Atom
Ultra Librarian 3D Model Ultra Librarian FH8065301542215S R3UX CAD Model

Description

The Intel Atom ® Processor E3800 Product family is the Intel Architecture (lA) Soc thatintegrates the next generation Intel® processor core, Graphics, Memory Controller, andI/O interfaces into a single system-on-chip solution.
The figures below show the system level block diagram of the SoC. Refer to thesubsequent chapters for detailed information on the functionality of the differentinterface blocks.
